调心滚子轴承圆锥孔铜保持架

产品属性：

产品型号：请点击左侧选项进行选型重新选型

产品型号：待完成选型重置

含税总价：待选型

含税单价：待选型

未税单价：待选型

税率： 13.00%

购买数量	折扣	单价(未税)	单价(含税)	状态
暂无折扣

购买数量：

预计发货：0 天 按订单确认后起算

产品详情
文档下载

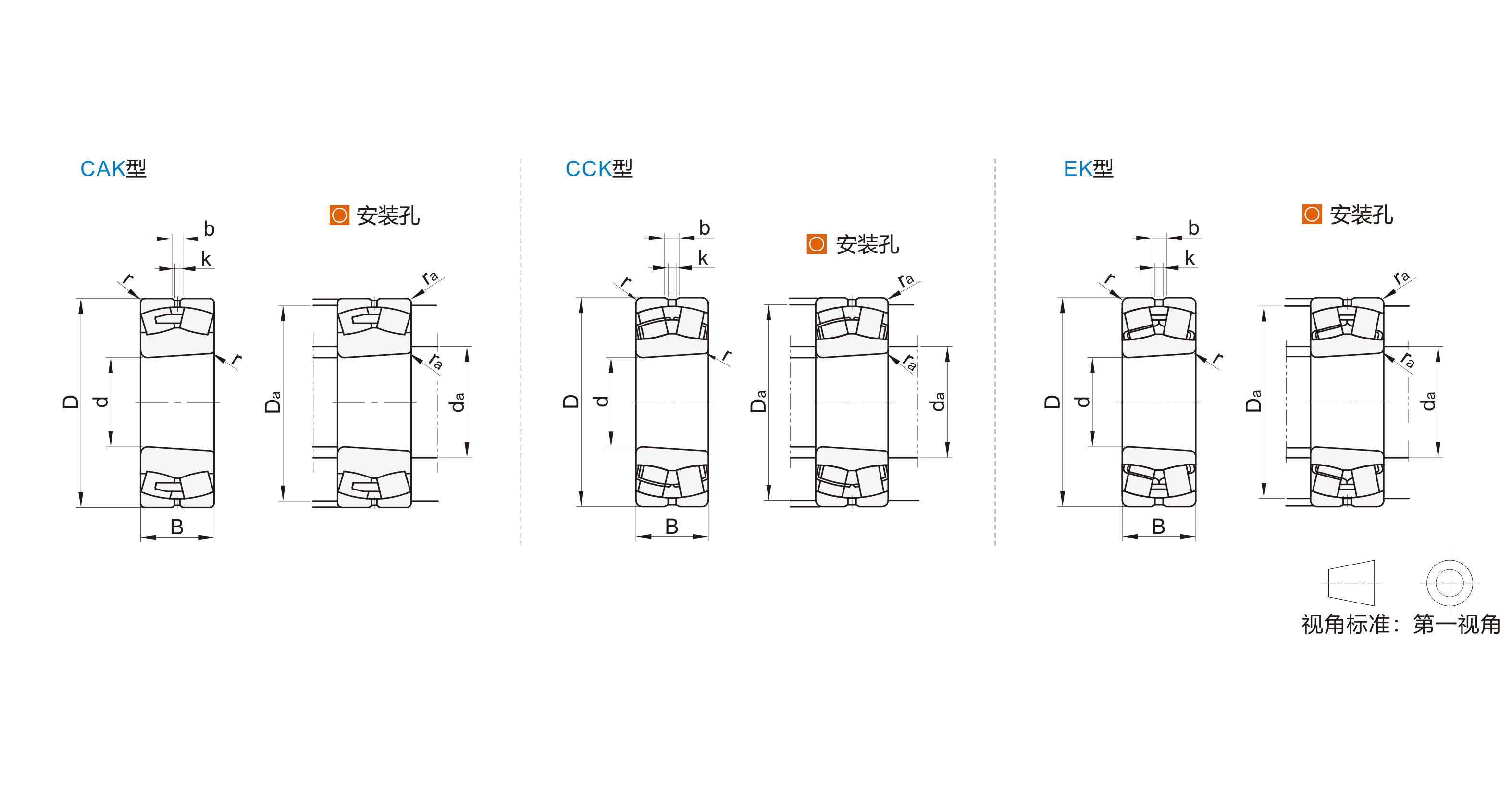

代码	油槽/油孔	轴承类型代码	轴承精度	后置代码	轴承材质	类型
JT-XXWSU	有	2	GB/T 307.1 0级	CA（铜保存架，内圈两侧有挡边） CC（钢保持架，内圈无挡边） E（钢保持架，内圈无挡边，优化的内部设计，用于提高承载能力） K（圆锥孔型，锥度1:12）	SUJ2	标准型 ● 圆锥孔型

选型参数

选型表

型号			d	D	B	b	k	r (min)	基本额定载荷		极限转速rpm(参考)		安装尺寸			重量 (Kg) (参考)
型号			d	D	B	b	k	r (min)	Cr(动) KN	Cor(静) KN	脂润滑	油润滑	da (min)	Da (max)	ra (max)	重量 (Kg) (参考)
JT-XXWSU-22205CAK	JT-XXWSU-22205CCK	JT-XXWSU-22205EK	25	52	18	3.7	2	1	48.9	42.9	7225	10200	31	46	1	0.28
JT-XXWSU-22206CAK	JT-XXWSU-22206CCK	JT-XXWSU-22206EK	30	62	20			1	59.8	56.7	8500	11900	36	56		0.29
JT-XXWSU-22207CAK	JT-XXWSU-22207CCK	JT-XXWSU-22207EK	35	72	23			1.1	78.9	75.1	7650	10200	42	65		0.43
JT-XXWSU-22208CAK	JT-XXWSU-22208CCK	JT-XXWSU-22208EK	40	80	23	6	3	1.1	89.4	88.4	6800	9350	47	73		0.55
JT-XXWSU-22308CAK	JT-XXWSU-22308CCK	JT-XXWSU-22308EK	40	90	33	6		1.5	137.9	136.4	5100	6800	48.5	81.5	1.5	1.1
JT-XXWSU-22209CAK	JT-XXWSU-22209CCK	JT-XXWSU-22209EK	45	85	23	5.5		1.1	97.1	100.1	6375	8500	52	78	1	0.59
JT-XXWSU-21309CAK	JT-XXWSU-21309CCK	一		100	25	6		1.5	129.5	120.1	5355	7225	53.5	91.5	1.5	0.95
JT-XXWSU-22309CAK	JT-XXWSU-22309CCK	JT-XXWSU-22309EK		100	36	6		1.5	168.4	168.4	4505	5950	53.5	91.5	1.5	1.4
JT-XXWSU-22210CAK	JT-XXWSU-22210CCK	JT-XXWSU-22210EK	50	90	23	5.5		1.1	97.1	102.2	5950	8075	57	83	1	0.87
JT-XXWSU-21310CAK	JT-XXWSU-21310CCK	一		110	27	6		2	143.5	153	4760	6370	60	100	2	1.35
JT-XXWSU-22310CAK	JT-XXWSU-22310CCK	JT-XXWSU-22310EK		110	40			2	215.2	222	4760	6375	60	100	2	1.9
JT-XXWSU-22211CAK	JT-XXWSU-22211CCK	JT-XXWSU-22211EK	55	100	25			1.5	120	126.1	5355	7225	63.5	91.5	1.5	0.88
JT-XXWSU-21311CAK	JT-XXWSU-21311CCK	一		120	29			2	159	160.7	4760	6375	65	110	2	1.6
JT-XXWSU-22311CAK	JT-XXWSU-22311CCK	JT-XXWSU-22311EK		120	43	5.5		2	248.4	257.6	3655	4760	65	110	2	2.4
JT-XXWSU-22212CAK	JT-XXWSU-22212CCK	JT-XXWSU-22212EK	60	110	28	6		1.5	143.2	153.9	4760	6375	68.5	101.5	1.5	1.22
JT-XXWSU-21312CAK	JT-XXWSU-21312CCK	一		130	31	6		2.1	192.3	190.3	4080	5355	72	118	2	1.95
JT-XXWSU-22312CAK	JT-XXWSU-22312CCK	JT-XXWSU-22312EK		130	46	8.3	4.5	2.1	285	308	3400	4505	72	118	2	3
JT-XXWSU-22213CAK	JT-XXWSU-22213CCK	JT-XXWSU-22213EK	65	120	31	6	3	1.5	182.2	204.5	4250	5950	73.5	111.5	1.5	1.63
JT-XXWSU-21313CAK	JT-XXWSU-21313CCK	一		140	33	6	3	2.1	214	226.4	3655	5100	77	128	2	2.45
JT-XXWSU-22313CAK	JT-XXWSU-22313CCK	JT-XXWSU-22313EK		140	48	8.3	4.5	2.1	313	331	3230	4250	77	128	2	3.6
JT-XXWSU-22214CAK	JT-XXWSU-22214CCK	JT-XXWSU-22214EK	70	125	31	6	3	1.5	191	210	4250	5695	78.5	116.5	1.5	1.66
JT-XXWSU-21314CAK	JT-XXWSU-21314CCK	一		150	35	6	3	2.1	241.8	239.8	3400	4760	82	138	2	3
JT-XXWSU-22314CAK	JT-XXWSU-22314CCK	JT-XXWSU-22314EK		150	51	8.3	4.5	2.1	368	396	2890	3825	82	138	2	4.4
JT-XXWSU-22215CAK	JT-XXWSU-22215CCK	JT-XXWSU-22215EK	75	130	31	6	3	1.5	195	221	4080	5355	83.5	121.5	1.5	1.75
JT-XXWSU-21315CAK	JT-XXWSU-21315CCK	—		160	37	6	3	2.1	284	283.4	3400	4760	87	148	2	3.55
JT-XXWSU-22315CAK	JT-XXWSU-22315CCK	JT-XXWSU-22315EK		160	55	8.3	4.5	2.1	405	437	2720	3655	87	148		5.4
JT-XXWSU-22216CAK	JT-XXWSU-22216CCK	JT-XXWSU-22216EK	80	140	33	6	3	2	222	252.1	3655	5100	90	130		2.2
JT-XXWSU-21316CAK	JT-XXWSU-21316CCK	—		170	39	6	3	2.1	299.8	304	3230	4505	92	158		4.2
JT-XXWSU-22316CAK	JT-XXWSU-22316CCK	JT-XXWSU-22316EK		170	58	8.3	4.5	2.1	451	497	2550	3400	92	158		6.4
JT-XXWSU-22217CAK	JT-XXWSU-22217CCK	JT-XXWSU-22217EK	85	150	36	6	3	2	266.7	308.5	3400	4760	95	140		2.8
JT-XXWSU-21317CAK	JT-XXWSU-21317CCK	—		180	41	6	3	3	349.5	356.2	3230	4505	99	166	2.5	5
JT-XXWSU-22317CAK	JT-XXWSU-22317CCK	JT-XXWSU-22317EK		180	60	8.3	4.5	3	506	570	2380	3230	99	166	2.5	7.4
JT-XXWSU-22218CAK	JT-XXWSU-22218CCK	JT-XXWSU-22218EK	90	160	40	6	3	2	299.1	354.8	3230	4505	100	150	2	4
JT-XXWSU-23218CAK	JT-XXWSU-23218CCK	一		160	52.4	5.5	3	2	380.4	482.5	2380	3230	100	150	2	4.6
JT-XXWSU-21318CAK	JT-XXWSU-21318CCK	一		190	43	8.3	4.5	3	387.8	396.8	3060	4080	104	176	2.5	5.8
JT-XXWSU-22318CAK	JT-XXWSU-22318CCK	JT-XXWSU-22318EK		190	64	11.1	6	3	560	640	2210	3060	104	176	2.5	8.8
JT-XXWSU-22219CAK	JT-XXWSU-22219CCK	JT-XXWSU-22219EK	95	170	43	8.3	4.5	2.1	350	414	3060	4080	107	158	2	4.2
JT-XXWSU-22319CAK	JT-XXWSU-22319CCK	JT-XXWSU-22319EK	95	200	67	11.1	6	3	616	704	2210	2890	109	186	2.5	10.3
JT-XXWSU-23120CAK	JT-XXWSU-23120CCK	—	100	165	52	6	3	2	394.5	536.9	2550	3400	110	155	2	4.4
JT-XXWSU-22220CAK	JT-XXWSU-2220CCK	JT-XXWSU-22220EK		180	46	8.3	4.5	2.1	407.7	474.6	2890	3825	112	168		5
JT-XXWSU-23220CAK	JT-XXWSU-23220CCK	一		180	60.3			2.1	750	874	2040	2890	112	168		13
JT-XXWSU-21320CAK	JT-XXWSU-21320CCK	一		215	47			3	391	451	2890	3825	114	201	2.5	8.8
JT-XXWSU-22320CAK	JT-XXWSU-22320CCK	JT-XXWSU-22320EK		215	73	11.1	6	3	750	874	2040	2890	114	201	2.5	13
JT-XXWSU-23022CAK	JT-XXWSU-23022CCK	一	110	170	45	6	3	2	332	479.5	2890	3655	120	160	2	3.75
JT-XXWSU-23122CAK	JT-XXWSU-23122CCK	一		180	56	8.3	4.5	2	458.5	644.3	2380	3060	120	170		5.55
JT-XXWSU-22222CAK	JT-XXWSU-22222CCK	JT-XXWSU-22222EK		200	53			2.1	534.9	622.5	2550	3400	122	188		7.4
JT-XXWSU-23222CAK	JT-XXWSU-23222CCK	一		200	69.8			2.1	621.1	829.8	1870	2720	122	188		9.7
JT-XXWSU-22322CAK	JT-XXWSU-22322CCK	JT-XXWSU-22322EK		240	80	13.9	7.5	3	874	1030	1700	2380	124	226	2.5	8.1
JT-XXWSU-23024CAK	JT-XXWSU-23024CCK	一	120	180	46	6	3	2	350.7	518.4	2720	3400	130	170	2	4.3
JT-XXWSU-23124CAK	JT-XXWSU-23124CCK	一		200	62	8.3	4.5	2	557.5	777.8	2210	2890	130	190		7.8
JT-XXWSU-22224CAK	JT-XXWSU-22224CCK	JT-XXWSU-22224EK		215	58	11.1	6	2.1	580	704	2380	3230	132	203		9.2
JT-XXWSU-23224CAK	JT-XXWSU-23224CCK	一		215	76	8.3	4.5	2.1	751.6	1022	1700	2380	132	203		12
JT-XXWSU-22324CAK	JT-XXWSU-22324CCK	JT-XXWSU-22324EK		260	86	13.9	7.5	3	926.4	1066	1700	2210	134	246	2.5	22
JT-XXWSU-23026CAK	JT-XXWSU-23026CCK	一	130	200	52	8.3	4.5	2	446.1	647.1	2380	3060	140	190	2	6.2
JT-XXWSU-23126CAK	JT-XXWSU-23126CCK	一		210	64	8.3	4.5	2	633.9	897.2	2040	2720	140	200	2	8.55
JT-XXWSU-22226CAK	JT-XXWSU-22226CCK	JT-XXWSU-22226EK		230	64	11.1	6	3	680	860	2210	3060	144	216	2.5	11.2
JT-XXWSU-23226CAK	JT-XXWSU-23226CCK	一		230	80	8.3	4.5	3	778.9	1064	1615	2210	144	216	2.5	14
JT-XXWSU-22326CAK	JT-XXWSU-22326CCK			280	93	16.7	9	4	1087	1268	1530	2040	148	262	3	29
JT-XXWSU-23028CAK	JT-XXWSU-23028CCK		140	210	53	8.3	4.5	2	519.6	773.7	2210	2890	150	200	2	6.7
JT-XXWSU-23128CAK	JT-XXWSU-23128CCK			225	68	8.3	4.5	2.1	669.7	977.7	1870	2380	152	213	2	10.5
JT-XXWSU-22228CAK	JT-XXWSU-22228CCK	JT-XXWSU-22228EK		250		6	3	3	739.8	953.3	2040	2720	154	236	2.5	14.5
JT-XXWSU-23228CAK	JT-XXWSU-23228CCK	一		250		11.1	6	3	920.4	1282	1445	2040	154	236	2.5	18.5
JT-XXWSU-22328CAK	JT-XXWSU-22328CCK			300	102	16.7	9	4	1247	1480	1445	1870	158	282	3	36
JT-XXWSU-23030CAK	JT-XXWSU-23030CCK		150	225	56	8.3	4.5	2.1	574.2	850.2	2040	2720	162	213	2	8.14
JT-XXWSU-23130CAK	JT-XXWSU-23130CCK			250	80	11.1	6	2.1	863.8	1255	1700	2210	162	238	2	16
JT-XXWSU-22230CAK	JT-XXWSU-22230CCK	JT-XXWSU-22230EK		270	73	13.9	7.5	3	823.1	1051	1870	2550	164	256	2.5	18.5
JT-XXWSU-23230CAK	JT-XXWSU-23230CCK	一		270	96	11.1	6	3	1161	1625	1360	1870	164	256	2.5	24
JT-XXWSU-22330CAK	JT-XXWSU-22330CCK			320	108	16.7	9	4	1383	1656	1360	1870	168	302	3	43
JT-XXWSU-23032CAK	JT-XXWSU-23032CCK		160	240	60	11.1	6	2.1	586	890	2040	2550	172	228	2	9.74
JT-XXWSU-23132CAK	JT-XXWSU-23132CCK			270	86	13.9	7.5	2.1	1074	1520	1615	2040	172	258	2	20.5
JT-XXWSU-22232CAK	JT-XXWSU-22232CCK	JT-XXWSU-22232EK		290	80	13.9	7.5	3	1000	1320	1700	2380	174	276	2.5	22
JT-XXWSU-22332CAK	JT-XXWSU-22332CCK	—		340	114	16.7	9	4	1530	1800	1275	1615	178	322	3	51
JT-XXWSU-23934CAK	JT-XXWSU-23934CCK		170	230	45	9	4.5	2	330	650	1500	1900	180	220	2	5.8
JT-XXWSU-23034CAK	JT-XXWSU-23034CCK			260	67	11.1	6	2.1	730.5	1132	1870	2380	182	248		13.1
JT-XXWSU-23134CAK	JT-XXWSU-23134CCK			280	88	13.9	7.5	2.1	1028	1523	1530	2040	182	268		21.5
JT-XXWSU-22234CAK	JT-XXWSU-22234CCK			310	86	16.7	9	4	1030	1340	1615	2210	188	292	3	29
JT-XXWSU-22334CAK	JT-XXWSU-22334CCK			360	120	16.7	9	4	1781	2226	1190	1530	188	342	3	60
JT-XXWSU-23936CAK	JT-XXWSU-23936CCK		180	250	52	6	3	2	440	835	1400	1800	190	240	2	8.21
JT-XXWSU-23036CAK	JT-XXWSU-23036CCK			280	74	13.9	7.5	2.1	964.3	1453	1700	2210	192	268	2	17.4
JT-XXWSU-23136CAK	JT-XXWSU-23136CCK			300	96	13.9	7.5	3	1213	1831	1445	1870	194	286	2.5	27.5
JT-XXWSU-22236CAK	JT-XXWSU-22236CCK			320	86	16.7	9	4	1080	1430	1530	2210	198	302	3	30
JT-XXWSU-22336CAK	JT-XXWSU-22336CCK			380	126	22.3	12	4	1950	2440	1105	1445	198	362	3	70
JT-XXWSU-23938CAK	JT-XXWSU-23938CCK		190	260	52	6	3	2	460	890	1300	1700	200	250	2	8.6
JT-XXWSU-22238CAK	JT-XXWSU-22238CCK			340	92	16.7	9	4	1170	1500	1445	2040	208	322	3	35.3
JT-XXWSU-22338CAK	JT-XXWSU-22338CCK			400	132	22.3	13	5	2122	2672	1020	1360	212	378	4	81
JT-XXWSU-23940CAK	JT-XXWSU-23940CCK		200	280	60	8.3	4.5	2.1	545	1100	1200	1600	212	268	2	12.1
JT-XXWSU-22240CAK	JT-XXWSU-22240CCK			360	98	16.7	9	4	1350	1780	1360	1870	218	342	3	47.7
JT-XXWSU-22340CAK	JT-XXWSU-22340CCK			420	138	22.3	12	5	2247	2830	1020	1275	222	398	4	94
JT-XXWSU-23944CAK	JT-XXWSU-23944CCK		220	300	60	8.3	4.5	2.1	565	1170	1100	1400	232	288	2	13.1
JT-XXWSU-22244CAK	JT-XXWSU-22244CCK			400	108	16.7	9	4	1620	2170	1275	1700	238	382	3	60.5
JT-XXWSU-22344CAK	JT-XXWSU-22344CCK			460	145	22.3	12	5	2648	3387	850	1190	242	438	4	120
JT-XXWSU-23948CAK	JT-XXWSU-23948CCK		240	320	60	8.3	4.5	2.1	565	1190	1000	1300	252	308	2	14
JT-XXWSU-22348CAK	JT-XXWSU-22348CCK		240	500	155	22.3	12	5	2850	3680	808	1105	262	478	4	155
JT-XXWSU-22352CAK	JT-XXWSU-22352CCK		260	540	165	22.3	12	6	3260	4180	723	935	288	512	5	190

1Kgf=9.81N
