圆柱滚子轴承 N型

产品属性：

产品型号：请点击左侧选项进行选型重新选型

产品型号：待完成选型重置

含税总价：待选型

含税单价：待选型

未税单价：待选型

税率： 13.00%

购买数量	折扣	单价(未税)	单价(含税)	状态
暂无折扣

购买数量：

预计发货：0 天 按订单确认后起算

产品详情
文档下载

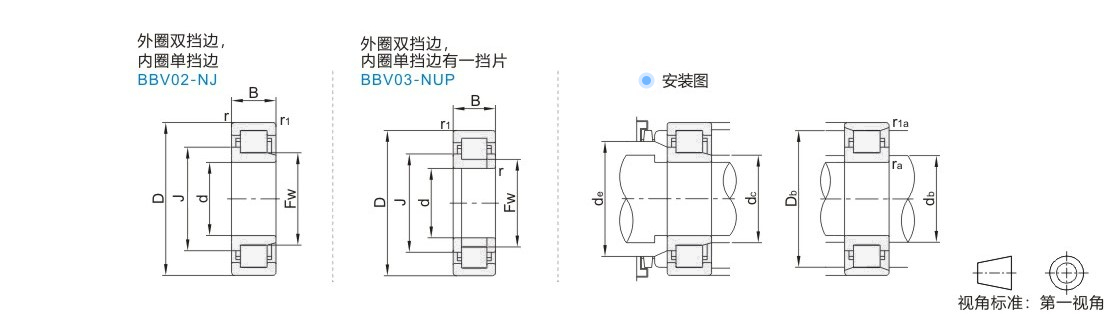

代码	轴承精度	后置代码	轴承材质	类型
JT-XXKSU-NJ	GB/T307. 1 0级	E(内部加强设计) M(铜保持架)	SUJ2	外圈双挡边，内圈单挡边
JT-XXKSQ-NUP	GB/T307. 1 0级	E(内部加强设计) M(铜保持架)	SUJ2	外圈双挡边，内圈单挡边有一挡片

选型参数

选型表

型号		d	D	B	r (min)	r1 (min)	Fw	J	基本额定负载 (KN)		极限转速 (rpm)		安装尺寸							重量 (kg) (参考)
外圈双挡边内圈单挡边	外圈双挡边内圈单挡边有一挡片	d	D	B	r (min)	r1 (min)	Fw	J	Cr (动)	Cor (静)	脂润滑	油润滑	db (min)	dc (max)	de (min)	Db (max)	Db (min)	ra (max)	r1a (max)	重量 (kg) (参考)
JT-XXKSU-NJ204EM	JT-XXKSQ-NUP204EM	20	47	14	1	0.6	26.5	29.5	25.7	22.6	13000	16000	25	26	32	43	42	1	0.6	0.122
JT-XXKSU-NJ304EM	JT-XXKSQ-NUP304EM	20	52	15	1.1		27.5	31.1	31.5	26.9	12000	15000	26.5	27	33	48	46			0.176
JT-XXKSU-NJ205EM	JT-XXKSQ-NUP205EM	25	52	15	1		31.5	34.5	29.3	27.7	12000	14000	30	31	37	48	46			0.151
JT-XXKSU-NJ305EM	JT-XXKSQ-NUP305EM	25	62	17	1.1	1.1	34	38	41.5	37.5	10000	12000	31.5	33	40	55.5	50		1	0.275
JT-XXKSU-NJ206EM	JT-XXKSQ-NUP206EM	30	62	16	1	0.6	37.5	41.1	39	37.5	11000	13000	35	37	44	58	56		0.6	0.226
JT-XXKSU-NJ306EM	JT-XXKSQ-NUP306EM	30	72	19	1.1	1.1	40.5	44.9	53	50	8500	10000	36.5	40	48	65.5	64		1	0.398
JT-XXKSU-NJ207EM	JT-XXKSQ-NUP207EM	35	72	17	1.1	0.6	44	48	50.5	50	8500	10000	41.5	43	50	68			0.6	0.327
JT-XXKSU-NJ2307EM	JT-XXKSQ-NUP2307EM		80	31	1.5	1.1	46.2	51	99	109	6700	8500	41.5	45	53	68		1.5	1	0.78
JT-XXKSU-NJ307EM	JT-XXKSQ-NUP307EM		80	21	1.5	1.1	46.2	51	71	71	7500	9500	43	45	53	73.5	70		1	0.545
JT-XXKSU-NJ407EM	JT-XXKSQ-NUP407EM		100	25	1.5	1.5	53	59	75.5	69	6700	8000	43	52	61	92	85		1.5	0.99
JT-XXKSU-NJ208EM	JT-XXKSQ-NUP208EM	40	80	18	1.1	1.1	50	54.2	55.5	55.5	8500	10000	46.5	49	56	73.5	72	1	1	0.426
JT-XXKSU-NJ2308EM	JT-XXKSQ-NUP2308EM		90	33	1.5	1.5	53.5	58.4	114	122	6000	7500	48	51	60	82	80	1.5	1.5	1.06
JT-XXKSU-NJ308EM	JT-XXKSQ-NUP308EM		90	23	1.5	1.5	53.5	58.4	83	81.5	4700	8000	48	51	60	82	80	1.5	1.5	0.754
JT-XXKSU-NJ408EM	JT-XXKSQ-NUP408EM		110	27	2	2	58	64.8	100.8	95.4	6000	7500	49	57	67	101	93	2	2	1.29
JT-XXKSU-NJ209EM	JT-XXKSQ-NUP209EM	45	85	19	1.1	1.1	55	59	64.3	68.1	6700	8000	51.5	54	61	78.5	77	1	1	0.496
JT-XXKSU-NJ2309EM	JT-XXKSQ-NUP2309EM		100	36	1.5	1.5	58.5	64	137	153	5300	6700	53	57	66	92	89	1.5	1.5	1.41
JT-XXKSU-NJ309EM	JT-XXKSQ-NUP309EM		100	25	1.5	1.5	58.5	64	94.7	98.3	6000	7500	53	57	66	92	89	1.5	1.5	0.995
JT-XXKSU-NJ409EM	JT-XXKSQ-NUP409EM		120	29	2	2	64.5	71.8	107	102	5600	6700	54	63	74	111	102	2	2	1.62
JT-XXKSU-NJ210EM	JT-XXKSQ-NUP210EM	50	90	20	1.1	1.1	60.4	64.6	68.7	75.8	6300	7500	56.5	58	67	83.5	83	1	1	0.541
JT-XXKSU-NJ2310EM	JT-XXKSQ-NUP2310EM		110	40	2	2	65	71	162	186	5000	6300	59	63	73	101	98	2	2	1.88
JT-XXKSU-NJ310EM	JT-XXKSQ-NUP310EM		110	27	2	2	65	71	107.2	124.9	5000	6000	59	63	73	101	98			1.31
JT-XXKSU-NJ410EM	JT-XXKSQ-NUP410EM		130	31	2.1	2.1	70.8	78.8	139	136	5000	6000	61	69	81	119	112			2.02
JT-XXKSU-NJ211EM	JT-XXKSQ-NUP211EM	55	100	21	1.5	1.1	66.5	70.8	86.2	98.7	5600	7100	63	65	73	93.5	91	1.5	1	0.718
JT-XXKSU-NJ2211EM	JT-XXKSQ-NUP2211EM		100	25	1.5	1.1	66.5	70.8	101	121	5600	7100	63	65	73	93.5	91	1.5	1	0.968
JT-XXKSU-NJ2311EM	JT-XXKSQ-NUP2311EM		120	43	2	2	70.5	77.2	201	233	4500	5600	64	69	80	111	107	2	2	2.37
JT-XXKSU-NJ311EM	JT-XXKSQ-NUP311EM		120	29	2	2	70.5	77.2	138.5	144.4	4500	5600	64	69	80	111	107			1.65
JT-XXKSU-NJ411EM	JT-XXKSQ-NUP411EM		140	33	2.1	2.1	77.2	85.2	139	138	4500	5600	66	76	87	129	119			2.48
JT-XXKSU-NJ212EM	JT-XXKSQ-NUP212EM	60	110	22	1.5	1.5	73.5	78.4	97.5	107	5300	6300	68	71	80	102	100	1.5	1.5	0.923
JT-XXKSU-NJ2212EM	JT-XXKSQ-NUP2212EM		110	28	1.5	1.5	73.5	78.4	131	157	5300	6300	68	71	80	102	100	1.5	1.5	1.21
JT-XXKSU-NJ2312EM	JT-XXKSQ-NUP2312EM		130	46	2.1	2.1	77	84	222	262	4300	5300	71	75	86	119	116	2	2	2.96
JT-XXKSU-NJ312EM	JT-XXKSQ-NUP312EM		130	31			77	84	150	157	4300	5000		75	86	119	116			2.05
JT-XXKSU-NJ412EM	JT-XXKSQ-NUP412EM		150	35			83	91.8	167	168	4300	5300		82	94	139	128			3.02
JT-XXKSU-NJ213EM	JT-XXKSQ-NUP213EM	65	120	23	1.5	1.5	79.6	84.8	108	119	4800	5600	73	77	87	112	108	1.5	1.5	1.21
JT-XXKSU-NJ2213EM	JT-XXKSQ-NUP2213EM		120	31	1.5	1.5	79.6	84.8	149	181	4800	6000	73	77	87	112	108	1.5	1.5	1.62
JT-XXKSU-NJ2313EM	JT-XXKSQ-NUP2313EM		140	48	2.1	2.1	83.5	91	248	287	3800	4800	76	81	93	129	125	2	2	3.48
JT-XXKSU-NJ313EM	JT-XXKSQ-NUP313EM		140	33			83.5	91	181	191	4000	4800		81	93	129	125			2.54
JT-XXKSU-NJ413EM	JT-XXKSQ-NUP413EM		160	37			89.3	98.5	195	203	4000	4800		88	100	149	137			3.61
JT-XXKSU-NJ214EM	JT-XXKSQ-NUP214EM	70	125	24	1.5	1.5	84.5	89.6	119	137	4500	5600	78	82	92	117	114	1.5	1.5	1.32
JT-XXKSU-NJ2214EM	JT-XXKSQ-NUP2214EM		125	31	1.5	1.5	84.5	89.6	156	194	4500	5600	78	82	92	117	114	1.5	1.5	1.71
JT-XXKSU-NJ2314EM	JT-XXKSQ-NUP2314EM		150	51	2.1	2.1	90	98	274	325	3600	4500	81	87	100	139	134	2	2	4.25
JT-XXKSU-NJ314EM	JT-XXKSQ-NUP314EM		150	35	2.1	2.1	90	98	205	222	3600	4300	81	87	100	139	134	2	2	3.11
JT-XXKSU-NJ414EM	JT-XXKSQ-NUP414EM		180	42	3	3	100	110.5	243	257	3600	4300	83	99	112	167	153	2.5	2.5	5.24
JT-XXKSU-NJ215EM	JT-XXKSQ-NUP215EM	75	130	25	1.5	1.5	88.5	94	130	156	4300	5300		87	96	122	120	1.5	1.5	1.41
JT-XXKSU-NJ2215EM	JT-XXKSQ-NUP2215EM		130	31	1.5	1.5	88.5	94	162	207	4300	5300		87	96	122	120	1.5	1.5	1.79
JT-XXKSU-NJ2315EM	JT-XXKSQ-NUP2315EM		160	55	2.1	2.1	95.5	104.2	330	295	3400	4300	86	93	106	149	143	2	2	5.25
JT-XXKSU-NJ315EM	JT-XXKSQ-NUP315EM		160	37	2.1	2.1	95.5	104.2	240	263	3400	4000	86	93	106	149	143	2	2	3.74
JT-XXKSU-NJ415EM	JT-XXKSQ-NUP415EM		190	45	3	3	104.5	116	262	274	3400	4000	88	103	118	177	162	2.5	2.5	6.22
JT-XXKSU-NJ216EM	JT-XXKSQ-NUP216EM	80	140	26	2	2	95.3	101.2	139	167	4000	4800	89	94	104	131	128	2	2	1.67
JT-XXKSU-NJ2216EM	JT-XXKSQ-NUP2216EM		140	33	2	2	95.3	101.2	186	243	4000	5000	89	94	104	131	128			2.12
JT-XXKSU-NJ2316EM	JT-XXKSQ-NUP2316EM		170	58	2.1	2.1	103	111.8	355	430	3200	4000	91	99	114	159	151			6.25
JT-XXKSU-NJ316EM	JT-XXKSQ-NUP316EM		170	39	2.1	2.1	103	111.8	256	282	3200	3800	91	99	114	159	151			4.22
JT-XXKSU-NJ416EM	JT-XXKSQ-NUP416EM		200	48	3	3	110	122	299	315	3200	3800	93	109	124	187	172	2.5	2.5	7.32
JT-XXKSU-NJ217EM	JT-XXKSQ-NUP217EM	85	150	28	2	2	101.8	108.2	167	199	3800	4500	94	99	110	141	137	2	2	2.11
JT-XXKSU-NJ2217EM	JT-XXKSQ-NUP2217EM		150	36	2	2	101.8	108.2	214.7	274.1	3800	4500	94	99	110	141	137	2	2	2.67
JT-XXKSU-NJ2317EM	JT-XXKSQ-NUP2317EM		180	60	3	3	108	117.5	393	485	3000	3600	98	106	119	167	160	2.5	2.5	7.16
JT-XXKSU-NJ317EM	JT-XXKSQ-NUP317EM		180	41	3	3	108	117.5	295	336	3000	3600		106	119	167	160	2.5	2.5	4.81
JT-XXKSU-NJ1018EM	JT-XXKSQ-NUP1018EM	90	140	24	1.5	1.1	103	107.8	88	114	4500	5600		101	109	133.5	129	1.5	1	1.33
JT-XXKSU-NJ218EM	JT-XXKSQ-NUP218EM		160	30	2	2	107	114.2	182	217	3600	4300	99	105	116	151	146	2	2	2.44
JT-XXKSU-NJ2218EM	JT-XXKSQ-NUP2218EM		160	40	2	2	107	114.2	233	298	3600	4300	99	105	116	151	146	2	2	3.33
JT-XXKSU-NJ2318EM	JT-XXKSQ-NUP2318EM		190	64	3	3	115	125	435	535	2800	3400	103	111	127	177	169	2.5	2.5	8.56
JT-XXKSU-NJ318EM	JT-XXKSQ-NUP318EM		190	43	3	3	115	125	323	360	2800	3400	103		127	177	169	2.5	2.5	5.72
JT-XXKSU-NJ219EM	JT-XXKSQ-NUP219EM	95	170	32	2.1	2.1	113.5	121	226	274	3400	4000	106		123	159	155	2	2	3.02
JT-XXKSU-NJ2219EM	JT-XXKSQ-NUP2219EM		170	43	2.1	2.1	113.5	121	284.4	368	3400	4000	106		123	159	155	2	2	4.14
JT-XXKSU-NJ2319EM	JT-XXKSQ-NUP2319EM		200	67	3	3	121.5	132	468.9	585.9	2600	3200	108	119	134	187	178	2.5	2.5	9.81
JT-XXKSU-NJ319EM	JT-XXKSQ-NUP319EM		200	45	3	3	121.5	132	338	392	2600	3200		119	134	187	178	2.5	2.5	6.62
JT-XXKSU-NJ1020EM	JT-XXKSQ-NUP1020EM	100	150	24	1.5	1.1	113	117.8	93	126	4300	5300		111	119	143.5	139	1.5	1	1.45
JT-XXKSU-NJ220EM	JT-XXKSQ-NUP220EM		180	34	2.1	2.1	120	128	250	305	3200	3800	111	117	130	169	164	2	2	3.66
JT-XXKSU-NJ2220EM	JT-XXKSQ-NUP2220EM		180	46	2.1	2.1	120	128	335	445	3200	3800	111	117	130	169	164	2	2	5.01
JT-XXKSU-NJ2320EM	JT-XXKSQ-NUP2320EM		215	73	3	3	129.5	140.5	569	715	2400	3000	113	125	143	202	190	2.5	2.5	12.8
JT-XXKSU-NJ320EM	JT-XXKSQ-NUP320EM		215	47	3	3	129.5	140.5	390	440	2400	3000	113	125	143	202	190	2.5	2.5	8.57
JT-XXKSU-NJ1021EM	JT-XXKSQ-NUP1021EM	105	160	26	2	1.1	119.5	124.7	141	198	4000	4800	114	118	126	153.5	147.5	2	1	1.84
JT-XXKSU-NJ221EM	JT-XXKSQ-NUP221EM		190	36	2.1	2.1	126.8	135	248.4	308.6	3400	4000	116	124	137	179	173	2	2	3.95
JT-XXKSU-NJ321EM	JT-XXKSQ-NUP321EM		225	49	3	3	135	147	407	452	2600	3200	118	132	149	212	199	2.5	2.5	8.53
JT-XXKSU-NJ1022EM	JT-XXKSQ-NUP1022EM	110	170	28	2	1.1	125	131	160	226	3800	4500	119	124	132	163.5	157	2	1	2.33
JT-XXKSU-NJ222EM	JT-XXKSQ-NUP222EM		200	38	2.1	2.1	132.5	141.5	296	371	2800	3400	121	130	144	189	182		2	4.27
JT-XXKSU-NJ2222EM	JT-XXKSQ-NUP2222EM		200	53	2.1	2.1	132.5	141.5	382	514	2800	3400	121	130	144	189	182		2	7.41
JT-XXKSU-NJ2322EM	JT-XXKSQ-NUP2322EM		240	80	3	3	143	155.5	675	880	2200	2800	123	140	158	227	211	2.5	2.5	19.4
JT-XXKSU-NJ322EM	JT-XXKSQ-NUP322EM		240	50	3	3	143	155.5	450	525	2200	2800	123	140	158	227	211	2.5	2.5	11.1
JT-XXKSU-NJ1024EM	JT-XXKSQ-NUP1024EM	120	180	28	2	1.1	135	141	164	237	3400	4300	129	134	142	173.5	167	2	1	2.44
JT-XXKSU-NJ2224EM	JT-XXKSQ-NUP2224EM		215	58	2.1	2.1	143.5	153	396	549	2600	3200	131	141	156	204	196		2	9.18
JT-XXKSU-NJ224EM	JT-XXKSQ-NUP224EM		215	40	2.1	2.1	143.5	153	342	433	2600	3200	131	141	156	204	196		2	5.97
JT-XXKSU-NJ2324EM	JT-XXKSQ-NUP2324EM		260	86	3	3	154	168.5	785	1020	2000	2600	133	151	171	247	230	2.5	2.5	26.1
JT-XXKSU-NJ324EM	JT-XXKSQ-NUP324EM		260	55	3	3	154	168.5	632	727	2000	2600	133	151	171	247	230	2.5	2.5	13.9
JT-XXKSU-NJ1026EM	JT-XXKSQ-NUP1026EM	130	200	33	2	1.1	148	154.8	246	378	3200	3800	139	146	156	193.5	184	2	1	3.69
JT-XXKSU-NJ2226EM	JT-XXKSQ-NUP2226EM		230	64	3	3	156	165.5	550	776	2400	3000	143	151	168	217	208	2.5	2.5	11.8
JT-XXKSU-NJ226EM	JT-XXKSQ-NUP226EM		230	40	3	3	156	165.5	371	466	2400	2800	143	151	168	217	208	2.5	2.5	6.92
JT-XXKSU-NJ2326EM	JT-XXKSQ-NUP2326EM		280	93	4	4	167	182	860	1126	1900	2400	146	164	184	264	247	3	3	30.9
JT-XXKSU-NJ326EM	JT-XXKSQ-NUP326EM		280	58	4	4	167	182	590	694	1900	2400	146	164	184	264	247	3	3	19.4
JT-XXKSU-NJ1028EM	JT-XXKSQ-NUP1028EM	140	210	33	2	1.1	158	164.8	251	396	3000	3600	149	156	166	203.5	194	2	1	4.05
JT-XXKSU-NJ2228EM	JT-XXKSQ-NUP2228EM		250	68	3	3	169	179.5	575	835	2200	2600	153	166	182	237	225	2.5	2.5	15.8
JT-XXKSU-NJ228EM	JT-XXKSQ-NUP228EM		250	42	3	3	169	179.5	395	515	2200	2600	153	166	182	237	225	2.5	2.5	8.73
JT-XXKSU-NJ2328EM	JT-XXKSQ-NUP2328EM		300	102	4	4	180	196	1030.7	1405.4	1700	2200	156	176	198	284	265	3	3	38.7
JT-XXKSU-NJ328EM	JT-XXKSQ-NUP328EM		300	62	4	4	180	196	670	800	1700	2200	156	176	198	284	265	3	3	23.2
JT-XXKSU-NJ1030EM	JT-XXKSQ-NUP1030EM	150	225	35	2.1	1.5	169.5	176.7	265	418	2800	3400	161	167	178	217	207.5	2	1.5	4.77
JT-XXKSU-NJ2230EM	JT-XXKSQ-NUP2230EM		270	73	3	3	182	193	630	920	2000	2400	163	179	196	257	242	2.5	2.5	19.7
JT-XXKSU-NJ230EM	JT-XXKSQ-NUP230EM		270	45	3	3	182	193	455	607	2000	2400	163	179	196	257	242	2.5	2.5	11.1
JT-XXKSU-NJ2330EM	JT-XXKSQ-NUP2330EM		320	108	4	4	193	210	630	920	2000	2400	166	190	213	304	282	3	3	19.7
JT-XXKSU-NJ330EM	JT-XXKSQ-NUP330EM		320	65	4	4	193	210	758	922	1600	2000	166	190	213	304	282	3	3	28.4
JT-XXKSU-NJ1032EM	JT-XXKSQ-NUP1032EM	160	240	38	2.1	1.5	180	188	238	340	2600	3200	171	178	189	232	222	2	1.5	5.91
JT-XXKSU-NJ2232EM	JT-XXKSQ-NUP2232EM		290	80	3	3	195	207	816	1204	1900	2400	173	192	210	277	259	2.5	2.5	25.1
JT-XXKSU-NJ232EM	JT-XXKSQ-NUP232EM		290	48	3	3	195	207	513	691	1900	2200	173	192	210	277	259	2.5	2.5	15.6
JT-XXKSU-NJ2332EM	JT-XXKSQ-NUP2332EM		340	114	4	4	208	225	1348	1835	1500	1900	176	200	228	324	297	3	3	56
JT-XXKSU-NJ332EM	JT-XXKSQ-NUP332EM		340	68	4	4	208	225	874	1080	1500	1900	176	200	228	324	297	3	3	34
JT-XXKSU-NJ1034EM	JT-XXKSQ-NUP1034EM	170	260	42	2.1	2.1	193	201.8	287	415	2400	2800	181	190	203	249	239	2	2	7.88
JT-XXKSU-NJ2234EM	JT-XXKSQ-NUP2234EM		310	86	4	4	208	220.5	965	1410	1800	2200	186	204	223	294	277	3	3	31
JT-XXKSU-NJ2334EM	JT-XXKSQ-NUP2334EM		360	120			220	238	1420	2000	1400	1800		216	241	344	315			59.5
JT-XXKSU-NJ234EM	JT-XXKSQ-NUP234EM		310	52			208	220.5	617	796	1800	2200		204	223	294	277			19.6
JT-XXKSU-NJ334EM	JT-XXKSQ-NUP334EM		360	72			220	238	795	1010	1600	2000		216	241	344	315			37
JT-XXKSU-NJ1036EM	JT-XXKSQ-NUP1036EM	180	280	46	2.1	2.1	205	215	399	597	2200	2600	191	203	216	269	257	2	2	10.3
JT-XXKSU-NJ2236EM	JT-XXKSQ-NUP2236EM		320	86	4	4	218	230.5	927	1408	1700	2000	196	214	233	304	287	3	3	31.9
JT-XXKSU-NJ2336EM	JT-XXKSQ-NUP2336EM		380	126			232	252	1420	2090	1300	1700		227	255	364	333			69.5
JT-XXKSU-NJ236EM	JT-XXKSQ-NUP236EM		320	52			218	230.5	595.6	797.2	1700	2000		214	233	304	287			20.4
JT-XXKSU-NJ336EM	JT-XXKSQ-NUP336EM		380	75			232	252	996	1260	1500	1800		227	255	364	333			44.2
JT-XXKSU-NJ1038EM	JT-XXKSQ-NUP1038EM	190	290	46	2.1	2.1	215	225	365	535	2000	2600	201	213	226	279	267	2	2	10.7
JT-XXKSU-NJ2238EM	JT-XXKSQ-NUP2238EM		340	92	4	4	231	244.5	1090	1650	1600	1900	206	227	247	324	304	3	3	39.5
JT-XXKSU-NJ2338EM	JT-XXKSQ-NUP2338EM		400	132	5	5	245	265	1520	2220	1300	1600	210	240	268	380	351	4	4	80.5
JT-XXKSU-NJ238EM	JT-XXKSQ-NUP238EM		340	55	4	4	231	244.5	695	955	1600	1900	206	227	247	324	304	3	3	24.2
JT-XXKSU-NJ338EM	JT-XXKSQ-NUP338EM		400	78	5	5	245	265	1130	1430	1400	1700	210	240	268	380	351	4	4	49.4
JT-XXKSU-NJ1040EM	JT-XXKSQ-NUP1040EM	200	310	51	2.1	2.1	229	239.4	390	580	2000	2400	211	226	241	299	283	2	2	13.9
JT-XXKSU-NJ2240EM	JT-XXKSQ-NUP2240EM		360	98	4	4	244	258	1220	1870	1500	1800	216	240	261	344	321	3	3	47.8
JT-XXKSU-NJ2340EM	JT-XXKSQ-NUP2340EM		420	138	5	5	260	280	1510	2240	1200	1500	220	254	283	400	366	4	4	92.6
JT-XXKSU-NJ240EM	JT-XXKSQ-NUP240EM		360	58	4	4	244	258	765	1060	1500	1800	216	240	261	344	321	3	3	28.1
JT-XXKSU-NJ340EM	JT-XXKSQ-NUP340EM		420	80	5	5	260	280	975	1270	1300	1600	220	254	283	400	366	4	4	55.8
JT-XXKSU-NJ1044EM	JT-XXKSQ-NUP1044EM	220	340	56	3	3	250	262	500	750	1800	2200	233	248	264	327	313	2.5	2.5	18.2
JT-XXKSU-NJ2244EM	JT-XXKSQ-NUP2244EM		400	108	4	4	270	286	1140	1810	1300	1600	236	266	289	384	355	3	3	61.8
JT-XXKSU-NJ2344EM	JT-XXKSQ-NUP2344EM		460	145	5	5	284	307	1970	3270	1000	1300	240	279	307	440	402	4	4	114
JT-XXKSU-NJ244EM	JT-XXKSQ-NUP244EM		400	65	4	4	270	286	760	1080	1500	1800	236	266	289	384	355	3	3	37.3
JT-XXKSU-NJ344EM	JT-XXKSQ-NUP344EM		460	88	5	5	284	307	1190	1570	1200	1500	240	279	307	440	402	4	4	74.6
JT-XXKSU-NJ1048EM	JT-XXKSQ-NUP1048EM	240	360	56	3	3	270	282	530	820	1600	2000	253	268	284	347	333	2.5	2.5	19.5
JT-XXKSU-NJ2248EM	JT-XXKSQ-NUP2248EM		440	120	4	4	295	313	1440	2320	1200	1500	256	293	316	424	390	3	3	84.9
JT-XXKSU-NJ248EM	JT-XXKSQ-NUP248EM		440	72	4	4	295	313	935	1340	1300	1600	256	293	316	424	390	3	3	50.5
JT-XXKSU-NJ348EM	JT-XXKSQ-NUP348EM		500	95	5	5	310	335	1360	1820	1100	1300	260	305	333	480	436	4	4	94.6
JT-XXKSU-NJ1052EM	JT-XXKSQ-NUP1052EM	260	400	65	4	4	296	309.6	645	1000	1500	1800	276	292	312	384	367	3	3	29.1
JT-XXKSU-NJ2252EM	JT-XXKSQ-NUP2252EM		480	130	5	5	320	340	1710	2770	1100	1300	280	318	343	460	426	4	4	111
JT-XXKSU-NJ252EM	JT-XXKSQ-NUP252EM		480	80	5	5	320	340	1100	1580	1200	1500	280	318	343	460	426	4	4	67.1
JT-XXKSU-NJ1056EM	JT-XXKSQ-NUP1056EM	280	420	65	4	4	316	329.6	660	1050	1400	1700	296	312	332	404	387	3	3	30.8
JT-XXKSU-NJ2256EM	JT-XXKSQ-NUP2256EM		500	130	5	5	340	360	1656	2790	935	1105	300	336	365	480	446	4	4	109
JT-XXKSU-NJ256EM	JT-XXKSQ-NUP256EM		500	80	5	5		360	1140	1680	1100	1400	300	336	365	480	446	4	4	70.7
JT-XXKSU-NJ1060EM	JT-XXKSQ-NUP1060EM	300	460	74	4	4		356	885	1400	1300	1500	316	336	358	444	423	3	3	43.7
JT-XXKSU-NJ260EM	JT-XXKSQ-NUP260EM	300	540	85	5	5	364	387	1400	2070	1100	1300	320	361	392	520	482	4	4	89.2
JT-XXKSU-NJ1064EM	JT-XXKSQ-NUP1064EM	320	480	74	4	4	360	376	905	1470	1200	1400	336	356	378	464	443	3	3	46.1
JT-XXKSU-NJ1068EM	JT-XXKSQ-NUP1068EM	340	520	82	5	5	385	403	1080	1740	1100	1300	360	381	405	500	479	4	4	61.8
JT-XXKSU-NJ1072EM	JT-XXKSQ-NUP1072EM	360	540				405	423	1110	1830	1000	1300	380	401	425	520	499			64.6
JT-XXKSU-NJ1076EM	JT-XXKSQ-NUP1076EM	380	560				425	443	1140	1910	1000	1200	400	421	445	540	519			67.5
JT-XXKSU-NJ1080EM	JT-XXKSQ-NUP1080EM	400	600	90			450	470	1360	2280	900	1100	420	446	473	580	554			88.2

1Kgf=9.81N
