JT-GQSSD
JT-GQSSU
JT-GQSSQ
JT-GQSSF
JT-GQSSO
JT-GQSSX
JT-GQSSL

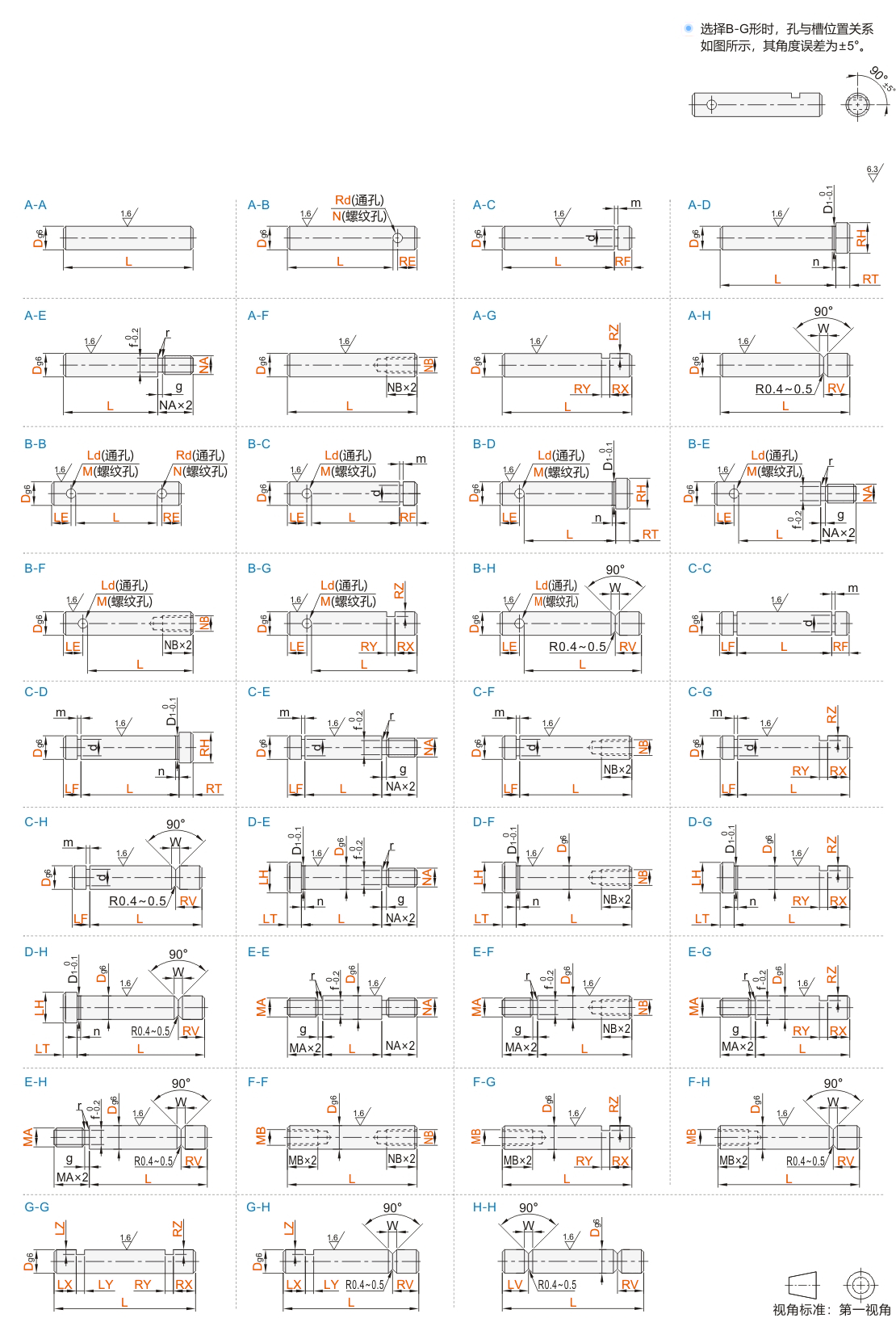

JT-GQSSM | A-A B-B C-C D-E E-E F-F G-G H-H
A-B B-C C-D D-F E-F F-G G-H
A-C B-D C-E D-G E-G F-H
A-D B-E C-F D-H E-H
A-E B-F C-G
A-F B-G C-H
A-G B-H
A-H | 3～20
(轴端形
状为E时,
D≥4;
轴端形状
为B/F/H
时,D≥6) | 5~200
(L≤D×20) | Ld(Rd)/2+1
≤LE(RE)
≤L/4
或
M(N)/2+1
≤LE(RE)
≤L/4 | D/5
≤Ld(Rd)
≤D/2 | 3
4
5
6
8
10
(M(N)
≤D/2) | 2
≤LF(RF)
≤L/4 | 0.5
≤LT(RT)
≤L/4 | D+1
≤LH(RH)
≤D+10 | 3
4
5
6
8
10
12
16
(MA(NA)
<D) | 3
4
5
6
8
10
12
16
(MB(NB)
≤D-3) | LX(RX)=0
或
2≤LX(RX)
≤L/4 | 2
≤LY(RY)
≤30 | LZ(RZ)
≤D/2 | 2
≤LV(RV)
≤L/4 |
