调心球轴承圆柱孔/圆锥孔工程塑料保持架

产品属性：

产品型号：请点击左侧选项进行选型重新选型

产品型号：待完成选型重置

含税总价：待选型

含税单价：待选型

未税单价：待选型

税率： 13.00%

购买数量	折扣	单价(未税)	单价(含税)	状态
暂无折扣

购买数量：

预计发货：0 天 按订单确认后起算

产品详情
文档下载

代码	轴承类型代码	轴承精度	后置代码	轴承材质	类型
JT-XXYSD	1	GB/T 307. 1 6级	A(外圈引导) TN(工程塑料模注保持架) K(圆锥孔型，锥度为1:12)	SUJ2	标准型

选型参数

选型表

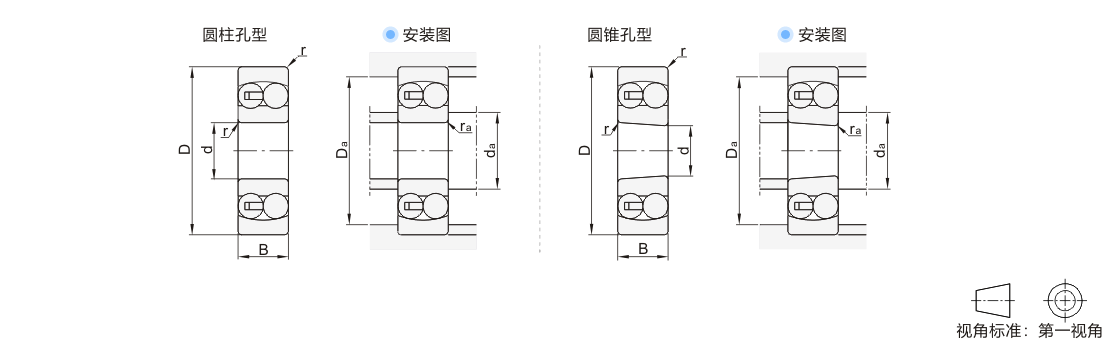

型号		d	D	B	r (min)	额定载荷(KN)		极限转速(rpm)		安装尺寸			重量(kg) （参考）
圆柱孔型	圆锥孔型	d	D	B	r (min)	Cr(动)	Cor(静)	脂润滑	油润滑	da(min.)	Da(max.)	ra(max.)	重量(kg) （参考）
JT-XXYSD-1200ATN	—	10	30	9	0.6	5.53	1.18	24000	30000	14	26	0.6	0.03
JT-XXYSD-2200ATN			30	14		8.06	1.73	24000	28000		26		0.04
JT-XXYSD-1300ATN			35	11		7.35	1.62	20000	24000		31		0.06
JT-XXYSD-1201ATN		12	32	10		6.24	1.43	22000	28000	16	28		0.04
JT-XXYSD-2201ATN			32	14		8.52	1.9	22000	26000	16	28		0.05
JT-XXYSD-1301ATN			37	12	1	9.36	2.16	18000	22000	17	32	1	0.JT-VMPSLCSFZMPNZFZ
JT-XXYSD-1202ATN		15	35	11	0.6	7.41	1.76	19000	24000	19	31	0.6	0.05
JT-XXYSD-2202ATN			35	14	0.6	8.71	2.04	18000	22000	19	31	0.6	0.06
JT-XXYSD-1302ATN			42	13	1	10.8	2.6	17000	20000	20	37	1	0.1
JT-XXYSD-1203ATN		17	40	12	0.6	8.84	2.2	16000		21	36	0.6	0.JT-VMPSLCSFZMPNZFZ
JT-XXYSD-2203ATN			40	16		10.6	2.55	16000		21	36	0.6	0.09
JT-XXYSD-1303ATN			47	14		12.7	3.4	14000	17000	22	42	1	0.13
JT-XXYSD-2303ATN				19	1	14.6	3.55	13000	16000	22			0.15
JT-XXYSD-1204ATN	JT-XXYSD-1204AKTN	20		14		12.7	3.4	15000	18000	25			0.12
JT-XXYSD-2204ATN	JT-XXYSD-2204AKTN			18		16.8	4.15	14000	17000	25			0.13
JT-XXYSD-1304ATN	JT-XXYSD-1304AKTN		52	15	1.1	14.3	4	12000	15000	26.5	45.5		0.15
JT-XXYSD-2304ATN	JT-XXYSD-2304AKTN			21	1.1	18.2	4.75	11000	14000	26.5	45.5		0.19
JT-XXYSD-1205ATN	JT-XXYSD-1205AKTN	25		15	1	14.3	4	13000	16000	30	47		0.14
JT-XXYSD-2205ATN	JT-XXYSD-2205AKTN			18	1	16.8	4.4	11000	14000	30	47		0.16
JT-XXYSD-1305ATN	JT-XXYSD-1305AKTN		62	17	1.1	19	5.4	9500	12000	31.5	55.5		0.25
JT-XXYSD-2305ATN	JT-XXYSD-2305AKTN			24	1.1	24.2	6.55	9500	12000	31.5	55.5		0.32
JT-XXYSD-1206ATN	JT-XXYSD-1206AKTN	30		16	1	15.6	4.65	10000	13000	35	57		0.22
JT-XXYSD-2206ATN	JT-XXYSD-2206AKTN			20	1	23.8	6.7	9500	12000	35	57		0.25
JT-XXYSD-1306ATN	JT-XXYSD-1306AKTN		72	19	1.1	22.5	6.8	8500	11000	36.5	65.5		0.39
JT-XXYSD-2306ATN	JT-XXYSD-2306AKTN			27		31.2	8.8	8000	10000	36.5			0.48
JT-XXYSD-1207ATN	JT-XXYSD-1207AKTN	35		17		19	6	9000	11000	41.5			0.31
JT-XXYSD-2207ATN	JT-XXYSD-2207AKTN			23		30.7	8.8	8500	10000	41.5			0.39
JT-XXYSD-1307ATN	JT-XXYSD-1307AKTN		80	21	1.5	26.5	8.5	7500	9500	43	72	1.5	0.51
JT-XXYSD-2307ATN	JT-XXYSD-2307AKTN			31	1.5	39.7	11.2	7100	9000	43	72	1.5	0.64
JT-XXYSD-1208ATN	JT-XXYSD-1208AKTN	40		18	1.1	19.9	6.95	8500	10000	46.5	73.5	1	0.39
JT-XXYSD-2208ATN	JT-XXYSD-2208AKTN			23	1.1	31.9	10	7500	9000	46.5	73.5	1	0.49
JT-XXYSD-1308ATN	JT-XXYSD-1308AKTN		90	23	1.5	33.8	11.2	6700	8000	48	82	1.5	0.67
JT-XXYSD-2308ATN	JT-XXYSD-2308AKTN		90	33	1.5	54	16	6300	7500	48	82	1.5	0.9
JT-XXYSD-1209ATN	JT-XXYSD-1209AKTN	45	85	19	1.1	22.9	7.8	7500	9000	51.5	78.5	1	0.47
JT-XXYSD-2209ATN	JT-XXYSD-2209AKTN		85	23	1.1	32.5	10.6	7000	8500	55.5	78.5	1	0.53
JT-XXYSD-1309ATN	JT-XXYSD-1309AKTN		100	25	1.5	39	13.4	6300	7500	53	92	1.5	0.93
JT-XXYSD-2309ATN	JT-XXYSD-2309AKTN		100	36	1.5	63.7	19.3	5600	7100	53	92	1.5	1.2
JT-XXYSD-1210ATN	JT-XXYSD-1210AKTN	50	90	20	1.1	26.5	9.15	7000	8500	56.5	83.5	1	0.53
JT-XXYSD-2210ATN	JT-XXYSD-2210AKTN		90	23	1.1	33.8	11.2	6300	7500	56.5	83.5		0.56
JT-XXYSD-1310ATN	JT-XXYSD-1310AKTN		110	27	1.5	43.6	14	5600	6700	59	101		1.17
JT-XXYSD-2310ATN	JT-XXYSD-2310AKTN		110	40		63.7	20	5300	6300	59	101		1.65
JT-XXYSD-1211ATN	JT-XXYSD-1211AKTN	55	100	21		27.6	10.6	6000	7100	63	92	1.5	0.71
JT-XXYSD-2211ATN	JT-XXYSD-2211AKTN		100	25		39	13.4	6000	7100	63	92	1.5	0.75
JT-XXYSD-1311ATN	JT-XXYSD-1311AKTN		120	29	2	50.7	18	5000	6300	64	111	2	1.6
JT-XXYSD-2311ATN	JT-XXYSD-2311AKTN		120	43	2	76.1	24	4800	6000	64	111	2	2.03
JT-XXYSD-1212ATN	JT-XXYSD-1212AKTN	60	110	22	1.5	31.2	12.2	5300	6300	68	102	1.5	0.9
JT-XXYSD-2212ATN	JT-XXYSD-2212AKTN		110	28	1.5	48.8	17	5300	6300	68	102	1.5	1.03
JT-XXYSD-1312ATN	JT-XXYSD-1312AKTN		130	31	2.1	58.5	22	4500	5600	71	119	2	2.03
JT-XXYSD-2312ATN	JT-XXYSD-2312AKTN		130	46	2.1	87.1	28.5	4300	5300	71	119	2	2.57
JT-XXYSD-1213ATN	JT-XXYSD-1213AKTN	65	120	23	1.5	35.1	14	4800	6000	73	112	1.5	1.15
JT-XXYSD-2213ATN	JT-XXYSD-2213AKTN		120	31	1.5	57.2	20	4800	6000	73	112	1.5	1.4
JT-XXYSD-1313ATN	JT-XXYSD-1313AKTN		140	33	2.1	65	25.5	4300	5300	76	129	2	2.54
JT-XXYSD-2313ATN	JT-XXYSD-2313AKTN		140	48	2.1	95.6	32.5	3800	4800	76	129	2	3.2
JT-XXYSD-1214ATN	JT-XXYSD-1214AKTN	70	125	24	1.5	34.5	13.7	4800	5600	78	117	1.5	1.3
JT-XXYSD-2214ATN	JT-XXYSD-2214AKTN		125	31	1.5	44.2	17	4500	5600	78	117	1.5	1.52
JT-XXYSD-1314ATN	JT-XXYSD-1314AKTN		150	35	2.1	74.1	27.5	4000	5000	81	139	2	3.19
JT-XXYSD-2314ATN	JT-XXYSD-2314AKTN		150	51	2.1	111	37.5	3600	4500	81	139	2	3.9
JT-XXYSD-1215ATN	JT-XXYSD-1215AKTN	75	130	25	1.5	39	15.6	4300	5300	83	122	1.5	1.41
JT-XXYSD-2215ATN	JT-XXYSD-2215AKTN		130	31	1.5	44.2	18	4300	5300	83	122	1.5	1.6
JT-XXYSD-1315ATN	JT-XXYSD-1315AKTN		160	37	2.1	79.3	30	3800	4500	86	149	2	3.65
JT-XXYSD-2315ATN	JT-XXYSD-2315AKTN		160	55	2.1	124	43	3400	4300	86	149		4.77
JT-XXYSD-1216ATN	JT-XXYSD-1216AKTN	80	140	26	2	39.7	17	4000	5000	89	131		1.73
JT-XXYSD-2216ATN	JT-XXYSD-2216AKTN		140	33	2	65	25.5	4000	5000	89	131		1.97
JT-XXYSD-1316ATN	JT-XXYSD-1316AKTN		170	39	2.1	88.4	33.5	3600	4300	91	159		4.31
JT-XXYSD-2316ATN	JT-XXYSD-2316AKTN		170	58	2.1	135	49	3200	4000	91	159		5.54
JT-XXYSD-1217ATN	JT-XXYSD-1217AKTN	85	150	28	2	48.8	20.8	3800	4500	94	141		2.09
JT-XXYSD-2217ATN	JT-XXYSD-2217AKTN		150	36	2	58.5	23.6	3800	4800	94	141		2.48
JT-XXYSD-1317ATN	JT-XXYSD-1317AKTN		180	41	3	97.5	38	3400	4000	98	167	2.5	5.13
JT-XXYSD-2317ATN	JT-XXYSD-2317AKTN		180	60	3	140	51	3000	3800	98	167	2.5	6.56
JT-XXYSD-1218ATN	JT-XXYSD-1218AKTN	90	160	30	2	57.2	23.6	3600	4300	99	151	2	2.55
JT-XXYSD-2218ATN	JT-XXYSD-2218AKTN		160	40	2	70.2	28.5	3600	4300	90	151	2	3.13
JT-XXYSD-1318ATN	JT-XXYSD-1318AKTN		190	43	3	117	44	3200	3800	103	177	2.5	5.94
JT-XXYSD-1319ATN	JT-XXYSD-1319AKTN	95	200	45		133	51	3000	3600	108	187		6.84
JT-XXYSD-1320ATN	JT-XXYSD-1320AKTN	100	215	47		143	57	2800	3400	113	202		8.46

1Kgf=9.81N
