规格 *

调心滚子轴承铜保持架圆柱孔

图片仅供参考

调心滚子轴承铜保持架圆柱孔

产品属性：

产品型号：请点击左侧选项进行选型重新选型

产品型号：待完成选型重置

含税总价：待选型

含税单价：待选型

未税单价：待选型

税率： 13.00%

购买数量	折扣	单价(未税)	单价(含税)	状态
暂无折扣

购买数量：

预计发货：0 天 按订单确认后起算

产品详情
文档下载

代码	油槽/油孔	轴承类型代码	轴承精度	后置代码	轴承材质	类型
JT-XXWSD	有	2	GB/T 307.1 0级	CA（铜保存架，内圈两侧有挡边） CC（钢保持架，内圈无挡边） E（钢保持架，内圈无挡边，优化的内部设计，用于提高承载能力）	SUJ2	标准型 ● 圆柱孔型

选型参数

选型表

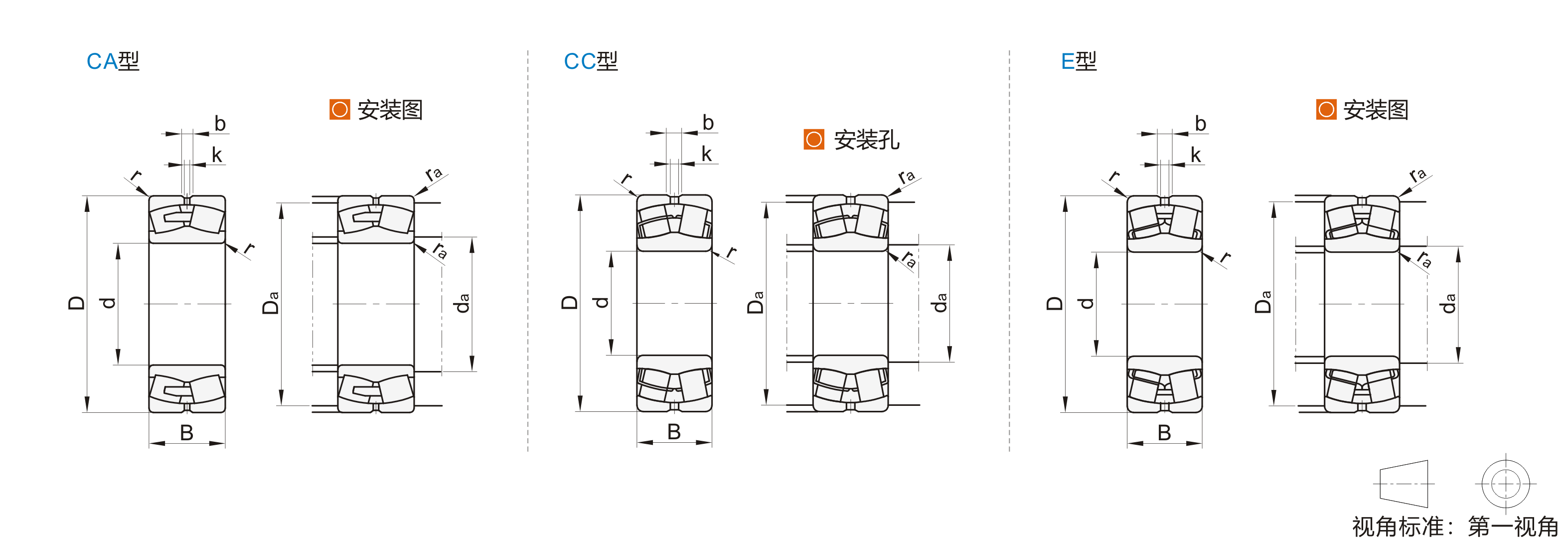

型号			d	D	B	b	k	r (min)	基本额定载荷		极限转速rpm(参考)		安装尺寸			重量 (Kg) (参考)
型号			d	D	B	b	k	r (min)	Cr(动) KN	Cor(静) KN	脂润滑	油润滑	da (min)	Da (max)	ra (max)	重量 (Kg) (参考)
JT-XXWSD-22205CA	JT-XXWSD-22205CC	JT-XXWSD-22205E	25	52	18	3.7	2	1	48.9	42.9	7225	10200	31	46	1	0.28
JT-XXWSD-22206CA	JT-XXWSD-22206CC	JT-XXWSD-22206E	30	62	20			1	59.8	56.7	8500	11900	36	56		0.29
JT-XXWSD-22207CA	JT-XXWSD-22207CC	JT-XXWSD-22207E	35	72	23			1.1	78.9	75.1	7650	10200	42	65		0.43
JT-XXWSD-22208CA	JT-XXWSD-22208CC	JT-XXWSD-22208E	40	80	23	6	3	1.1	89.4	88.4	6800	9350	47	73		0.55
JT-XXWSD-22308CA	JT-XXWSD-22308CC	JT-XXWSD-22308E	40	90	33	6		1.5	137.9	136.4	5100	6800	48.5	81.5	1.5	1.1
JT-XXWSD-22209CA	JT-XXWSD-22209CC	JT-XXWSD-22209E	45	85	23	5.5		1.1	97.1	100.1	6375	8500	52	78	1	0.59
JT-XXWSD-21309CA	JT-XXWSD-21309CC	—		100	25	6		1.5	129.5	120.1	5355	7225	53.5	91.5	1.5	0.95
JT-XXWSD-22309CA	JT-XXWSD-22309CC	JT-XXWSD-22309E		100	36	6		1.5	168.4	168.4	4505	5950	53.5	91.5	1.5	1.4
JT-XXWSD-22210CA	JT-XXWSD-22210CC	JT-XXWSD-22210E	50	90	23	5.5		1.1	97.1	102.2	5950	8075	57	83	1	0.87
JT-XXWSD-21310CA	JT-XXWSD-21310CC	—		110	27	6		2	143.5	153	4760	6370	60	100	2	1.35
JT-XXWSD-22310CA	JT-XXWSD-22310CC	JT-XXWSD-22310E		110	40			2	215.2	222	4760	6375	60	100	2	1.9
JT-XXWSD-22211CA	JT-XXWSD-22211CC	JT-XXWSD-22211E	55	100	25			1.5	120	126.1	5355	7225	63.5	91.5	1.5	0.88
JT-XXWSD-21311CA	JT-XXWSD-21311CC	—		120	29			2	159	160.7	4760	6375	65	110	2	1.6
JT-XXWSD-22311CA	JT-XXWSD-22311CC	JT-XXWSD-22311E		120	43	5.5		2	248.4	257.6	3655	4760	65	110	2	2.4
JT-XXWSD-22212CA	JT-XXWSD-22212CC	JT-XXWSD-22212E	60	110	28	6		1.5	143.2	153.9	4760	6375	68.5	101.5	1.5	1.22
JT-XXWSD-21312CA	JT-XXWSD-21312CC	—		130	31	6		2.1	192.3	190.3	4080	5355	72	118	2	1.95
JT-XXWSD-22312CA	JT-XXWSD-22312CC	JT-XXWSD-22312E		130	46	8.3	4.5	2.1	285	308	3400	4505	72	118	2	3
JT-XXWSD-22213CA	JT-XXWSD-22213CC	JT-XXWSD-22213E	65	120	31	6	3	1.5	182.2	204.5	4250	5950	73.5	111.5	1.5	1.63
JT-XXWSD-21313CA	JT-XXWSD-21313CC	—		140	33	6	3	2.1	214	226.4	3655	5100	77	128	2	2.45
JT-XXWSD-22313CA	JT-XXWSD-22313CC	JT-XXWSD-22313E		140	48	8.3	4.5	2.1	313	331	3230	4250	77	128	2	3.6
JT-XXWSD-22214CA	JT-XXWSD-22214CC	JT-XXWSD-22214E	70	125	31	6	3	1.5	191	210	4250	5695	78.5	116.5	1.5	1.66
JT-XXWSD-21314CA	JT-XXWSD-21314CC	—		150	35	6	3	2.1	241.8	239.8	3400	4760	82	138	2	3
JT-XXWSD-22314CA	JT-XXWSD-22314CC	JT-XXWSD-22314E		150	51	8.3	4.5	2.1	368	396	2890	3825	82	138	2	4.4
JT-XXWSD-22215CA	JT-XXWSD-22215CC	JT-XXWSD-22215E	75	130	31	6	3	1.5	195	221	4080	5355	83.5	121.5	1.5	1.75
JT-XXWSD-21315CA	JT-XXWSD-21315CC	—		160	37	6	3	2.1	284	283.4	3400	4760	87	148	2	3.55
JT-XXWSD-22315CA	JT-XXWSD-22315CC	JT-XXWSD-22315E		160	55	8.3	4.5	2.1	405	437	2720	3655	87	148		5.4
JT-XXWSD-22216CA	JT-XXWSD-22216CC	JT-XXWSD-22216E	80	140	33	6	3	2	222	252.1	3655	5100	90	130		2.2
JT-XXWSD-21316CA	JT-XXWSD-21316CC	—		170	39	6	3	2.1	299.8	304	3230	4505	92	158		4.2
JT-XXWSD-22316CA	JT-XXWSD-22316CC	JT-XXWSD-22316E		170	58	8.3	4.5	2.1	451	497	2550	3400	92	158		6.4
JT-XXWSD-22217CA	JT-XXWSD-22217CC	JT-XXWSD-22217E	85	150	36	6	3	2	266.7	308.5	3400	4760	95	140		2.8
JT-XXWSD-21317CA	JT-XXWSD-21317CC	—		180	41	6	3	3	349.5	356.2	3230	4505	99	166	2.5	5
JT-XXWSD-22317CA	JT-XXWSD-22317CC	JT-XXWSD-22317E		180	60	8.3	4.5	3	506	570	2380	3230	99	166	2.5	7.4
JT-XXWSD-22218CA	JT-XXWSD-22218CC	JT-XXWSD-22218E	90	160	40	6	3	2	299.1	354.8	3230	4505	100	150	2	4
JT-XXWSD-23218CA	JT-XXWSD-23218CC	—		160	52.4	5.5	3	2	380.4	482.5	2380	3230	100	150	2	4.6
JT-XXWSD-21318CA	JT-XXWSD-21318CC	—		190	43	8.3	4.5	3	387.8	396.8	3060	4080	104	176	2.5	5.8
JT-XXWSD-22318CA	JT-XXWSD-22318CC	JT-XXWSD-22318E		190	64	11.1	6	3	560	640	2210	3060	104	176	2.5	8.8
JT-XXWSD-22219CA	JT-XXWSD-22219CC	JT-XXWSD-22219E	95	170	43	8.3	4.5	2.1	350	414	3060	4080	107	158	2	4.2
JT-XXWSD-22319CA	JT-XXWSD-22319CC	JT-XXWSD-22319E	95	200	67	11.1	6	3	616	704	2210	2890	109	186	2.5	10.3
JT-XXWSD-23120CA	JT-XXWSD-23120CC	—	100	165	52	6	3	2	394.5	536.9	2550	3400	110	155	2	4.4
JT-XXWSD-22220CA	JT-XXWSD-22220CC	JT-XXWSD-22220E		180	46	8.3	4.5	2.1	407.7	474.6	2890	3825	112	168		5
JT-XXWSD-23220CA	JT-XXWSD-23220CC	—		180	60.3			2.1	750	874	2040	2890	112	168		13
JT-XXWSD-21320CA	JT-XXWSD-21320CC	—		215	47			3	391	451	2890	3825	114	201	2.5	8.8
JT-XXWSD-22320CA	JT-XXWSD-22320CC	JT-XXWSD-22320E		215	73	11.1	6	3	750	874	2040	2890	114	201	2.5	13
JT-XXWSD-23022CA	JT-XXWSD-23022CC	—	110	170	45	6	3	2	332	479.5	2890	3655	120	160	2	3.75
JT-XXWSD-23122CA	JT-XXWSD-23122CC	—		180	56	8.3	4.5	2	458.5	644.3	2380	3060	120	170		5.55
JT-XXWSD-22222CA	JT-XXWSD-22222CC	JT-XXWSD-22222E		200	53			2.1	534.9	622.5	2550	3400	122	188		7.4
JT-XXWSD-23222CA	JT-XXWSD-23222CC	—		200	69.8			2.1	621.1	829.8	1870	2720	122	188		9.7
JT-XXWSD-22322CA	JT-XXWSD-22322CC	JT-XXWSD-22322E		240	80	13.9	7.5	3	874	1030	1700	2380	124	226	2.5	8.1
JT-XXWSD-23024CA	JT-XXWSD-23024CC	—	120	180	46	6	3	2	350.7	518.4	2720	3400	130	170	2	4.3
JT-XXWSD-23124CA	JT-XXWSD-23124CC	—		200	62	8.3	4.5	2	557.5	777.8	2210	2890	130	190		7.8
JT-XXWSD-22224CA	JT-XXWSD-22224CC	JT-XXWSD-22224E		215	58	11.1	6	2.1	580	704	2380	3230	132	203		9.2
JT-XXWSD-23224CA	JT-XXWSD-23224CC	—		215	76	8.3	4.5	2.1	751.6	1022	1700	2380	132	203		12
JT-XXWSD-22324CA	JT-XXWSD-22324CC	JT-XXWSD-22324E		260	86	13.9	7.5	3	926.4	1066	1700	2210	134	246	2.5	22
JT-XXWSD-23026CA	JT-XXWSD-23026CC	—	130	200	52	8.3	4.5	2	446.1	647.1	2380	3060	140	190	2	6.2
JT-XXWSD-23126CA	JT-XXWSD-23126CC	—		210	64	8.3	4.5	2	633.9	897.2	2040	2720	140	200	2	8.55
JT-XXWSD-22226CA	JT-XXWSD-22226CC	JT-XXWSD-22226E		230	64	11.1	6	3	680	860	2210	3060	144	216	2.5	11.2
JT-XXWSD-23226CA	JT-XXWSD-23226CC	—		230	80	8.3	4.5	3	778.9	1064	1615	2210	144	216	2.5	14
JT-XXWSD-22326CA	JT-XXWSD-22326CC			280	93	16.7	9	4	1087	1268	1530	2040	148	262	3	29
JT-XXWSD-23028CA	JT-XXWSD-23028CC		140	210	53	8.3	4.5	2	519.6	773.7	2210	2890	120	200	2	6.7
JT-XXWSD-23128CA	JT-XXWSD-23128CC			225	68	8.3	4.5	2.1	669.7	977.7	1870	2380	152	213	2	10.5
JT-XXWSD-22228CA	JT-XXWSD-22228CC	JT-XXWSD-22228E		250		6	3	3	739.8	953.3	2040	2720	154	236	2.5	14.5
JT-XXWSD-23228CA	JT-XXWSD-23228CC	—		250		11.1	6	3	920.4	1282	1445 1445	2040 1870	154	236	2.5	18.5
JT-XXWSD-22328CA	JT-XXWSD-22328CC			300	102	16.7	9	4	1247	1480	1445 1445	2040 1870	158	282	3	36
JT-XXWSD-23030CA	JT-XXWSD-23030CC		150	225	56	8.3	4.5	2.1	574.2	850.2	2040	2720	162	213	2	8.14
JT-XXWSD-23130CA	JT-XXWSD-23130CC			250	80	11.1	6	2.1	863.8	1255	1700	2210	162	238	2	16
JT-XXWSD-22230CA	JT-XXWSD-22230CC	JT-XXWSD-22230E		270	73	13.9	7.5	3	823.1	1051	1870	2550	164	256	2.5	18.5
JT-XXWSD-23230CA	JT-XXWSD-23230CC	—		270	96	11.1	6	3	1161	1625	1360 1360	1870 1870	164	256	2.5	24
JT-XXWSD-22330CA	JT-XXWSD-22330CC			320	108	16.7	9	4	1383	1656	1360 1360	1870 1870	168	302	3	43
JT-XXWSD-23032CA	JT-XXWSD-23032CC		160	240	60	11.1	6	2.1	586	890	2040	2550	172	22/8	2	9.74
JT-XXWSD-23132CA	JT-XXWSD-23132CC			270	86	13.9	7.5	2.1	1074	1520	1615	2040	172	258	2	20.5
JT-XXWSD-22232CA	JT-XXWSD-22232CC	JT-XXWSD-22232E		290	80	13.9	7.5	3	1000	1320	1700	2380	174	276	2.5	22
JT-XXWSD-22332CA	JT-XXWSD-22332CC	—		340	114	16.7	9	4	1530	1800	1275	1615	178	322	3	51
JT-XXWSD-23934CA	JT-XXWSD-23934CC		170	230	45	9.0	4.5	2	330	650	1500	1900	180	220	2	5.8
JT-XXWSD-23034CA	JT-XXWSD-23034CC			260	67	11.1	6	2.1	730.5	1132	1870	2380	182	248		13.1
JT-XXWSD-23134CA	JT-XXWSD-23134CC			280	88	13.9	7.5	2.1	1028	1523	1530	2040	182	268		21.5
JT-XXWSD-22234CA	JT-XXWSD-22234CC			310	86	16.7	9	4	1030	1340	1615	2210	188	292	3	29
JT-XXWSD-22334CA	JT-XXWSD-22334CC			360	120	16.7	9	4	1781	2226	1190	1530	188	342	3	60
JT-XXWSD-23936CA	JT-XXWSD-23936CC		180	250	52	6	3	2	440	835	1400	1800	190	240	2	8.21
JT-XXWSD-23036CA	JT-XXWSD-23036CC			280	74	13.9	7.5	2.1	964.3	1453	1700	2210	192	268	2	17.4
JT-XXWSD-23136CA	JT-XXWSD-23136CC			300	96	13.9	7.5	3	1213	1831	1445	1870	194	286	2.5	27.5
JT-XXWSD-22236CA	JT-XXWSD-22236CC			320	86	16.7	9	4	1080	1430	1530	2210	198	302	2	30
JT-XXWSD-22336CA	JT-XXWSD-22336CC			380	126	22.3	12	4	1950	2440	1105	1445	198	362	2	70
JT-XXWSD-23938CA	JT-XXWSD-23938CC		190	260	52	6	3	2	460	890	1300	1700	200	250	2	8.6
JT-XXWSD-22238CA	JT-XXWSD-22238CC			340	92	16.7	9	4	1170	1500	1445	2040	208	322	3	35.3
JT-XXWSD-22338CA	JT-XXWSD-22338CC			400	132	22.3	13	5	2122	2672	1020	1360	212	378	4	81
JT-XXWSD-23940CA	JT-XXWSD-23940CC		200	280	60	8.3	4.5	2.1	545	1100	1200	1600	212	268	2	12.1
JT-XXWSD-22240CA	JT-XXWSD-22240CC			360	98	16.7	9	4	1350	1780	1360	1870	218	342	3	47.7
JT-XXWSD-22340CA	JT-XXWSD-22340CC			420	138	22.3	12	5	2247	2830	1020	1275	222	398	4	94
JT-XXWSD-23944CA	JT-XXWSD-23944CC		220	300	60	8.3	4.5	2.1	565	1170	1100	1400	232	288	2	13.1
JT-XXWSD-22244CA	JT-XXWSD-22244CC			400	108	16.7	9	4	1620	2170	1275	1700	238	382	3	60.5
JT-XXWSD-22344CA	JT-XXWSD-22344CC			460	145	22.3	12	5	2648	3387	850	1190	242	438	4	120
JT-XXWSD-23948CA	JT-XXWSD-23948CC		240	320	60	8.3	4.5	2.1	565	1190	1000	1300	252	308	2	14
JT-XXWSD-22348CA	JT-XXWSD-22348CC		240	500	155	22.3	12	5	2850	3680	808	1105	262	478	4	155
JT-XXWSD-22352CA	JT-XXWSD-22352CC		260	540	165	22.3	12	6	3260	4180	723	935	288	512	5	190

1Kgf=9.81N
