规格 *

圆锥滚子轴承外圈无挡边

图片仅供参考

圆锥滚子轴承外圈无挡边

产品属性：

产品型号：请点击左侧选项进行选型重新选型

产品型号：待完成选型重置

含税总价：待选型

含税单价：待选型

未税单价：待选型

税率： 13.00%

购买数量	折扣	单价(未税)	单价(含税)	状态
暂无折扣

购买数量：

预计发货：0 天 按订单确认后起算

产品详情
文档下载

代码	轴承类型代码	后置代码	轴承精度	轴承材质
JT-XXUSD	3	X（外形尺寸符合国家标准）	GB/T 307.1 5级	SUJ2

选型参数

选型表

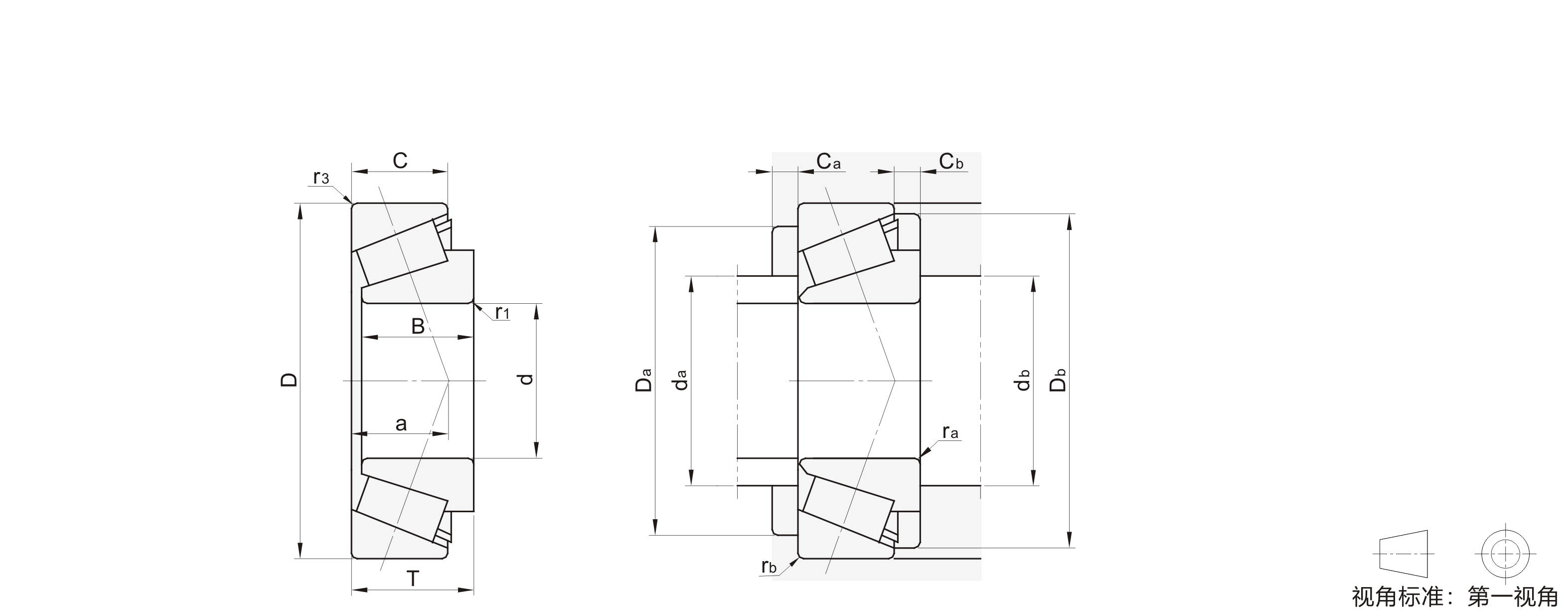

型号	d	D	T	B	C	r1 (min)	r3 (min)	额定载荷		极限转速(r/min)		作用点 a	安装尺寸									重量 (Kg) (参考)
								额定载荷		极限转速(r/min)			安装尺寸										Cr(动) KN	Cor(静) KN	脂润滑	油润滑	da (max.)	db (max.)	Da (max.)	Da (min.)	Db (min.)	Ca (min.)	Cb (min.)	ra (max.)	rb (max.)
								JT-XXUSD-30302	15	42	14.25		13	11	1	1	23.6	21.1	9500	13000	9.5		22	20.5	36.5	35	38	2	3	1	1	0.096
JT-XXUSD-30203	17	40	13.25	12	20.1	19.9	23	22.5	34.5	33	37	2	0.079	11							9.5
JT-XXUSD-32203		40	17.25	16	14	22.7	23		34.5	33	37	23.3	11.5	3			0.105
JT-XXUSD-30303		47	15.25	14	12	29.2	26.7		8500	12000	10.5	24	41.5	40			42	3	3.5	0.133
JT-XXUSD-32004	20	42	15	15		0.6	0.6	24.6	27.4	12000	10.5	9000	25	24.5	37.5	36	39	3	3	0.6	0.6	0.102
JT-XXUSD-30204		47	15.25	14		1	1	27.9	28.5	8000	11000	11.5	27	25.5	41.5	40	44	2	3	1	1	0.124
JT-XXUSD-32204		47	19.25	18	15	1	1	31.5	33.5	8000	10000	12.5	26	25.5	41.5	39	43	2	4	1	1	0.158
JT-XXUSD-30304		52	16.25	15	13	1.5	1.5	35	33.5	7500	10000	10.5	28	28.5	43.5	42.5	47.5	3	3	1.5	1.5	0.171
JT-XXUSD-32304		52	22.25	21	18	1.5	1.5	45.5	47.5	8000	11000	14	27	28.5	43.5	43	47		4	1.5	1.5	0.204
JT-XXUSD-32005X	25	47	15	15	11.5	0.6	0.6	27.4	33	8300		12	30	29.5	42.5	40	44		3.5	0.6	0.6	0.118
JT-XXUSD-33005		47	17	17	14	0.6	0.6	31	38	8000		11	29	29.5	42.5	40	43.5		3	0.6	0.6	0.131
JT-XXUSD-32205		52	19.25	18	16	1	1	38.5	43.5	7000	10000	14	31	30.5	46.5	43	48	2	4	1	1	0.186
JT-XXUSD-30205			16.25	15	13			32	35	7000	9000	12.5	31			44	48	2	3			0.159
JT-XXUSD-33205			22	22	18			47.5	56.5	7900	10000	14	30			43	49	4	4			0.225
JT-XXUSD-30305		62	18.25	17	15	1.5	1.5	47.5	46	6300	8500	13	34	33.5	53.5	52	57	3	3	1.5	1.5	0.271
JT-XXUSD-32305			25.25	24	20			62.5	66	6300	8000	16	32	33.5	53.5	52	57		5			0.365
JT-XXUSD-31305			18.25	17	13			38	40	5700	8000	19.9	33	39	53	47	59		5			0.26
JT-XXUSD-32006X	30	55	17	17	13	1	1	36	44.5	6700	9000	13.5	35	35.5	49.5	48	52		4	1	1	0.17
JT-XXUSD-33006		55	20	20	16			36.13	45.9	5865	7820	13	35.5		49.5	46.5	52		4			0.2
JT-XXUSD-30206		62	17.25	16	14			43	47.5	6000	8000	13.5	37		56.5	53	57	2	3			0.245
JT-XXUSD-32206			21.25	20	17			52	60		8500	15.5	37			52	58	2.5	4			0.285
JT-XXUSD-33206			25	25	19.5			66.5	79.5		8000	16	36			53	59	5	5.5			0.355
JT-XXUSD-30306		72	20.75	19	16	1.5	1.5	59.5	60	5300	7500	15	40	38.5	63.5	62	66	3	4.5	1.5	1.5	0.408
JT-XXUSD-32306			28.75	27	23			80	88.5	5600	7000	18.5	38	38.5	63.5	59	66		5.5			0.575
JT-XXUSD-31306			20.75	19	14			47.3	50	5000	6700	23.1	40	44	63	55	68		6.5			0.378
JT-XXUSD-32907	35	55	14	14	11.5	0.6	0.6	23.29	31.88	5780	7650	10.5	40	39.5	50.5	48	52.5	2.5	2.5	0.6	0.6	0.12
JT-XXUSD-32007X		62	18	18	14	1	1	43.5	55.5	5600	8000	15.5	40	40.5	56.5	54	59	4	4	1	1	0.223
JT-XXUSD-33007		62	21	21	17	1	1	49	65	5600	8000	14	40.5	40.5	56.5	52	59	3	4	1	1	0.267
JT-XXUSD-30207		72	18.25	17	15	1.5	1.5	54	59.5	5300	7100	15	44	43.5	63.5	62	67		3	1.5	1.5	0.345
JT-XXUSD-32207			24.25	23	19			70.5	83.5			17.5	43			61	67		5			0.54
JT-XXUSD-33207			28	28	22			86.5	108			18.5	42			61	68	5	6			0.54
JT-XXUSD-32307		80	32.75	31	25	2		99	111	5000	6700	20.5	43	45	71.5	66	74	3	7.5	2		0.76
JT-XXUSD-30307			22.75	21	18	2		76	79	4800	6700	17	45	45	71.5	70	74		4.5			0.513
JT-XXUSD-31307			22.75	21	15	2		62	68	4300	6000	25.2	44	51	71	62	77		7.5			0.52
JT-XXUSD-32908	40	62	15	15	12	0.6	0.6	34	47	5600	7500	11.5	45.5	44.5	57.5	54	58.5		3	0.6	0.6	0.163
JT-XXUSD-32008X		68	19	19	14.5	1	1	52.5	71	5300	7100	15	46	45.5	62.5	60	65	4	4.5	1	1	0.28
JT-XXUSD-33008		68	22	22	18	1	1	50.58	70.13	4505	6035	15	46	45.5	62.5	60	64	2.5	4	1	1	0.31
JT-XXUSD-33108		75	26	26	20.5			67.58	87.55	4420	5865	18	47	48.5	66.5	65	71	4	5.5	1.5	1.5	0.49
JT-XXUSD-30208		80	19.75	18	16	1.5	1.5	63.5	70	4800	6300	16.5	49		71.5	69	75	3	3.5			0.438
JT-XXUSD-32208			24.75	23	19	1.5	1.5	74	90.5	4500	6300	19	48			68	75	3	5.5			0.559
JT-XXUSD-33208			32	32	25			87.55	112.2	4165	5610	21	47			67	76	5	7			0.73
JT-XXUSD-30308		90	25.25	23	20		1	90.5	101	4300	5600	19.5	52	50	81.5	77	82	3	5	2		0.761
JT-XXUSD-32308			35.25	33	27	2		120	145	4500	6000	27.5	48	50	81.5	72	84		8			1.045
JT-XXUSD-31308			25.25	23	17		1.5	80	89.5	4000	5300	28.7	50	56	81	70	87		8			0.726
JT-XXUSD-32909	45	68	15	15	12	0.6	0.6	34.5	50.5	5000	6700	12	50	50	63.5	59.5	64.5		3	0.6	0.6	0.187
JT-XXUSD-32009X		75	20	20	15.5	1	1	60	83	4500	6300	16.5	51	50.5	69.5	67	72	4	4.5	1	1	0.354
JT-XXUSD-33009		75	24	24	19	1	1	56.1	79.48	4080	5440	16	51	50.5	69.5	67	71		5	1	1	0.4
JT-XXUSD-33109		80	26	26	20.5	1.5	1.5	71.83	97.75	3995	5270	19.5	52	53.5	71.5	69	77		5.5	1.5	1.5	0.54
JT-XXUSD-30209		85	20.75	19	16			68.5	79.5	4300	6000	18	54		76.5	74	80	3	4.5			0.506
JT-XXUSD-32209			24.75	23	19			83	102	4300	6000	20	53			73	81	3	5.5			0.602
JT-XXUSD-33209			32	32	25			90.95	119.85	3740	5015	22	52			72	81	5	7			0.78
JT-XXUSD-30309		100	27.25	25	22	2	1.5	112	127	3800	5300	21	59	55	91.5	86	93	3	5	2	1.5	1.008
JT-XXUSD-31309			27.25	25	18			95.5	109	4000	5000	31.5	57	61	91	79	96		9			0.958
JT-XXUSD-32309			38.5	36	30			144	177	3800	5300	25.5	56	55	91.5	82	93		8			1.417
JT-XXUSD-32010X	50	80	20	20	15.5	1	1	61	87	4300	6000	17.5	56	55.5	74.5	72	77	4	4.5	1	1	0.31
JT-XXUSD-33010		80	24	24	19	1	1	59.08	87.55	3740	4930	17.5		55.5	74.5	72	76		5	1	1	0.43
JT-XXUSD-33110		85	26	26	20	1.5	1.5	73.53	102.85	3570	4760	20.5		58.5	76.5	74	82		6	1.5	1.5	0.58
JT-XXUSD-30210		90	21.75	20	17			76	91.5	4000	5300	19.5	58		81.5	79	85	3	4.5			0.592
JT-XXUSD-32210			24.75	23	19			87.5	109	4000	5300	21	58			78	85	3	5.5			0.618
JT-XXUSD-33210			32	32	24.5			97.75	134.3	3400	4505	23.5	57			77	87	5	7.5			0.85
JT-XXUSD-30310		110	29.25	27	23	2.5	2	130	148	3400	4800	23	65	62	100	95	102	3	6	2	2	1.25
JT-XXUSD-32310			42.25	40	33			176	220	3600		28.5	62	62		90	102		9			1.885
JT-XXUSD-31310			29.25	27	19			106	120	3800		34.5	62	70		87	105		10			1.254
JT-XXUSD-32911	55	80	17	17	14	1	1	37.83	62.48	3655	4845	14.5	60.5	60.5	74.5	70.5	76.5	3	3	1	1	0.27
JT-XXUSD-32011		90	23	23	17.5	1.5	1.5	81.5	117	3800	5300	20	63	63.5	81.5	81	86	4	5.5	1.5	1.5	0.53
JT-XXUSD-33011		90	27	27	21			77.78	117.3	3400	4590	19.5	63		81.5	81	86	5	6			0.64
JT-XXUSD-33111		95	30	30	23			94.35	131.75	3315	4420	22	62		86.5	83	91	5	7			0.85
JT-XXUSD-30211		100	22.75	21	18	2		94.5	113	3600	5000	21	64	65	91.5	88	94	4	4.5	2		0.739
JT-XXUSD-32211			26.75	25	21			110	137	3600	5000	22.5	63			87	95	4	5.5			0.915
JT-XXUSD-33211			35	29	25			117.3	159.8	3060	4165	25.5	62			86	96	6	8			1.15
JT-XXUSD-30311		120	31.5	43	25	2.5	2	150	171	3200	4300	24.5	71	67	110	104	111	4	6.5		2	1.628
JT-XXUSD-32311			45.5	29	25			204	258	3200		30.5	68	67		99			10.5			2.39
JT-XXUSD-31311			31.5	29	25			121	137	3400		24.6	70	71		104			6.5			1.576
JT-XXUSD-32912	60	85	17	17	14	1	1	43.45	70.55	3400	4505	15.5	65.5	65.5	79.5	76.5	82	3	3	1	1	0.3
JT-XXUSD-32012		95	23	23	17.5	1.5	1.5	85.5	127	3600	5000	21	67	68.5	86.5	85	91	4	5.5	1.5	1.5	0.56
JT-XXUSD-33012		95	27	27	21			79.48	123.25	3145	4165	20.5			86.5	85	90	5	6			0.68
JT-XXUSD-33112		100	30	30	23			96.05	139.4	3060	3995	23.5			91.5	88	96	5	7			0.91
JT-XXUSD-30212		110	23.75	22	19	2		104	123	3400	4500	22	70	70	101.5	96	103	4	4.5	2		0.934
JT-XXUSD-32212			29.75	28	24			131	167	3400	4500	25	69			95	104	4	5.5			1.197
JT-XXUSD-33212			38	38	29			136.85	189.55	2890	3825	27.5	69			93	105	6	9			1.55
JT-XXUSD-32312		130	48.5	46	37	3	2.5	233	295	3000	4000	32	74	74	118	108	120	4	11.5	2.5	2	2.88
JT-XXUSD-31312		130	33.5	31	22	3	2.5	145	166	2600	3600	40.3	74	84	118	103	125	4	11.5	2.5	2	1.896
JT-XXUSD-32913	65	90	17	17	14	1	1	41.23	72.25	3145	4165	16.5	70	70.5	84.5	80	86.5	3	3	1	1	0.32
JT-XXUSD-32013		100	23	23	17.5	1.5	1.5	86.5	132	3400	4500	22.5	72	73.5	91.5	90	97	4	5.5	1.5	1.5	0.63
JT-XXUSD-33013		100	27	27	21			82.88	132.6	2890	3910	21.5	72		91.5	89	96	5	6			0.73
JT-XXUSD-33113		110	34	34	26.5			122.4	179.35	3805	3740	26	73		101.5	96	106	6	7.5			1.28
JT-XXUSD-30213		120	24.75	23	20	2		122	151	3000	4000	23.5	77	75	111.5	106	113	4	4.5	2		1.132
JT-XXUSD-32213			32.75	31	27			157	202	3000	4000	27	75			104	115	4	5.5			1.5
JT-XXUSD-33213			41	41	32			165.75	225.25	2635	3570	29.5	74			102	115	7	9			1.98
JT-XXUSD-32313		140	51	48	39	3	2.5	267	340	2800	3800	34.5	80	79	128	117	130	4	12	2.5	2	3.609
JT-XXUSD-31313		140	36	33	23	3	2.5	173	205	2800	3600	43.2	80	89	128	111	133		13	2.5	2	2.426
JT-XXUSD-32914	70	100	20	20	16	1	1	58.23	93.5	2890	3910	18	75	75.5	94.5	90	96		4	1	1	0.49
JT-XXUSD-32014		110	25	25	19	1.5	1.5	104	158	3200	4300	24	78	78.5	101.5	98	105	5	6	1.5	1.5	0.85
JT-XXUSD-33014		110	31	31	25.5	1.5		107.95	173.4	2720	3570	22.5	79	78.5	101.5	99	105	5	5.5	1.5		1.JT-VMPSLCSFZMPNZFZ
JT-XXUSD-30214		125	26.25	24	21	2		132	163	2800	4000	25.5	81	80	116.5	110	118	4	5	2		1.296
JT-XXUSD-32214			33.25	31	27			157	205	2800	4000	28.5	80			108	119	4	6			1.62
JT-XXUSD-33214			41	41	32			170.85	239.7	2465	3315	31	79			107	120	7	9			2.1
JT-XXUSD-32314		150	54	51	42	3	2.5	300	390	2600	3400	36.5	86	84	138	125	140	4	12	2.5	2	4.436
JT-XXUSD-31314		150	38	35	25	3	2.5	192	229	2600	3400	45.7	85	94	138	118	142		13	2.5	2	2.935
JT-XXUSD-32915	75	105	20	20	26	1	1	59.08	96.9	2720	3655	19	80	80.5	99.5	94	101.5		4	1	1	0.51
JT-XXUSD-32015		115	25	25	19	1.5	1.5	109	171	3000	4000	25.5	83	83.5	106.5	103	110	5	6	1.5	1.5	0.88
JT-XXUSD-33015		115	31	31	31.5	1.5		94.35	158.1	2550	3400	23	85	83.5	106.5	101	110.5	6	5.5	1.5		1.11
JT-XXUSD-30215		130	27.25	25	22	2		143	182	2800	3800	27		85	121.5	115	124	4	5	2		1.384
JT-XXUSD-32215			33.25	31	27			165	219	2800	3800	30				114	125	4	6			1.765
JT-XXUSD-33215			41	41	31			176.8	253	2295	3060	32	83			111	125	7	10			2.2
JT-XXUSD-32315		160	58	55	45	3	2.5	340	445	2400	3200	39	91	89	148	133	149	4	13	2.5	2	5.316
JT-XXUSD-31315		160	40	37	26	3	2.5	211	251	2200	3000	48.7	91	99	148	129	152	6	14	2.5	2	3.469
JT-XXUSD-32916	80	110	20	20	16	1	1	61.2	102.85	2550	3400	20	85	85.5	104.5	99	106.5	4	4	1	1	0.54
JT-XXUSD-32016		125	29	29	22	1.5	1.5	140	222	2800	3600	27	89	88.5	116.5	112	120	6	7	1.5	1.5	1.18
JT-XXUSD-33016		125	36	36	29.5	1.5	1.5	147.05	241.4	2380	3145	25	89	88.5	116.5	112	119	6	6.5	1.5	1.5	1.6
JT-XXUSD-30216		140	28.25	26	22	2.5	2	157	195	2600	3400	27.5	91	92	130	124	132	4	6	2	2	1.65
JT-XXUSD-32216			35.25	33	28			192	254	2600	3400	31	90			122	134	4	7			2.162
JT-XXUSD-33216			46	46	35			212.5	310.25	2125	2890	35	89			119	135	7	11			2.92
JT-XXUSD-32316		170	61.5	58	48	3	2.5	385	505	2200	3000	41.5	98	94	158	142	159	4	13.5	2.5		6.39
JT-XXUSD-31316		170	42.5	39	27	3	2.5	235	285	2000	2800	51.8	97	104	158	136	159	6	15.5	2.5		4.065
JT-XXUSD-32917	85	120	23	23	18	1.5	1.5	79.9	133.45	2380	3230	21	92	93.5	111.5	111	115	4	5	1.5	1.5	0.77
JT-XXUSD-32017		130	29	29	22			143	231	2600	3600	28.5	94		121.5	117	125	6	7			1.25
JT-XXUSD-33017		130	36	36	29.5			149.6	251.6	2210	2975	26	94		121.5	118	125	6	6.5			1.7
JT-XXUSD-30217		150	30.5	28	24	2.5	2	184	233	2400	3200	30	97	97	140	132	141	5	6.5	2	2	2.06
JT-XXUSD-32217			38.5	36	30			210	277	2400	3200	33.5	96			130	142	5	8.5			2.67
JT-XXUSD-33217			49	49	37			241.4	357	2040	2720	37.5	95			128	144	7	12			3.58
JT-XXUSD-32317		180	63.5	60	49	4	3	410	535	2000	2800	43	102	103	166	150	167	5	14.5	3	2.5	7.302
JT-XXUSD-31317		180	11.5	41	28	4	3	261	315	2000	2600	55.3	103	113	166	144	169	6	16.5	3	2.5	4.881
JT-XXUSD-32918	90	125	23	23	18	1.5	1.5	82.88	142.8	2295	3060	22	96	98.5	116.5	112.5	120.5	4	5	1.5	1.5	0.82
JT-XXUSD-32018		140	32	32	24	2		170	273	2400	3200	30	100	100	131.5	125	134	6	8	2		1.7
JT-XXUSD-33018		140	39	39	32.5	2		182.75	306	2125	2805	28	100	100	131.5	127	135	7	6.5			2.18
JT-XXUSD-30218		160	32.5	30	26	2.5	2	201	256	2200	3000	32	103	102	150	140	150	5	6.5		2	2.558
JT-XXUSD-32218		160	42.5	40	34	2.5	2	256	350	2200	3000	36	102	102	150	138	152	5	8.5		2	3.625
JT-XXUSD-32318		190	67.5	64	53	4	3	450	590	2000	2600	45.5	108	108	176	157	177	5	14.5	3	2.5	8.568
JT-XXUSD-31318		190	46.5	43	30	4	3	265	315	1800	2400	58.6	110	108	176	152	179	6	16.5	3	2.5	5.511
JT-XXUSD-32919	95	130	23	23	18	1.5	1.5	85.85	151.3	2125	2890	23.5	101	103.5	121.5	117	125.5	4	5	1.5	1.5	0.85
JT-XXUSD-32019		145	32	32	24	2		173	283	2400	3200	31.5	105	105	136.5	130	140	6	8	2		1.7
JT-XXUSD-33019		145	39	39	32.5	2		186.15	318.75	1955	2635	28.5	104	105	136.5	131	139	7	6.5	2		2.27
JT-XXUSD-30219		170	34.5	32	27	3	2.5	223	286	2200	2800	34	110	109	158	149	159	5	7.5	2.5	2	3.269
JT-XXUSD-32219		170	45.5	43	37	3	2.5	289	400	2200	2800	39	108	109	158	145	161		8.5	2.5	2	4.216
JT-XXUSD-32319		200	71.5	67	55	4	3	460	600	1900	2400	49	113	113	186	166	186		16.5	3	2.5	9.645
JT-XXUSD-31319		200	49.5	45	32	4	3	310	375	1800	2400	61.9	115	123	186	158	187	6	17.5	3	2.5	6.635
JT-XXUSD-32020	100	150	32	32	24	2	1.5	176	294	2200	3000	32.5	109	110	141.5	134	144	6	8	2	1.5	1.947
JT-XXUSD-33020		150	39	39	35.5	2	1.5	190.4	331.5	1870	2550	29.5	1098	110	141.5	135	143	7	6.5	2	1.5	2.37
JT-XXUSD-30220		180	37	34	29	3	2.5	255	330	2000	2600	36	116	114	168	157	168	5	8	2.5	2	3.976
JT-XXUSD-32220		180	49	46	39	3	2.5	325	450	2000	2600	41.5	114	114	168	154	171		10	2.5	2	5.213
JT-XXUSD-32320		215	77.5	73	60	4	3	565	755	1700	2500	53	212	118	201	177	200		17.5	3	2.5	12.96
JT-XXUSD-31320		215	56.5	51	35	4	3	350	435	1600	2000	67.7	125	136	201	169	202	7	21.5	3	2.5	8.6
JT-XXUSD-32921	105	145	25	25	20	1.5	1.5	107.1	186.15	1955	2550	25	113.5	113.5	136.5	131.5	140.5	5	5	1.5	1.5	1.2
JT-XXUSD-32021		160	35	35	26	2.5	2	204	340	2000	2800	34.5	116	117	150	143	154	6	9	2	2	2.5
JT-XXUSD-33021		160	43	43	34	2.5	2	208.25	357	1785	2380	31	116	117	150	145	153	7		2		3
JT-XXUSD-30221		190	39	36	30	3	2.5	280	365	1900	2600	38	122	119	178	165	178	6		2.5		4.51
JT-XXUSD-32221		190	53	50	43	3	2.5	360	510	1900	2600	44	119	119	178	161	180		10	2.5		6.26
JT-XXUSD-32321		225	81.5	77	63	4	3	585	780	1700	2200	55.2	129	130	211	186	209		18.5	3	2.5	14.21
JT-XXUSD-31321		225	58	53	36	4	3	380	470	1700	2300	70.2	130	141	211	177	211	7	22	3	2.5	9.68
JT-XXUSD-32922	110	150	25	25	20	1.5	1.5	107.95	192.1	1870	2465	26.5	117.5	118.5	141.5	137	145.5	5	5	1.5	1.5	1.23
JT-XXUSD-32022		170	38	38	29	2.5	2	236	390	2000	2600	36.5	122	122	160	152	163	7	9	2	2	3.1
JT-XXUSD-33022		170	47	47	37	2.5	2	244.8	425	1700	2295	33.6	121	122	160	152	161	7	10	2		3.8
JT-XXUSD-30222		200	41	38	32	3	2.5	315	420	1800	2400	40	129	124	188	174	188	6	9	2.5		5.27
JT-XXUSD-32222		200	56	53	46	3	2.5	400	565	1800	2400	47	126	124	188	170	190	6	10	2.5		7.36
JT-XXUSD-31322		240	63	57	38	4	3	430	563	1400	1900	74.7	136	146	226	191	224	7	25	3	2.5	12.2
JT-XXUSD-32024	120	180	38	38	39	2.5	2	242	405	1800	2400	39	131	132	170	161	173	7	8	2	2	3.1
JT-XXUSD-30224		215	43.5	40	34	3	2.5	335	450	1600	2200	44	140	134	203	187	203	6	9.5	2.5		6.125
JT-XXUSD-32224		215	61.5	58	50	3	2.5	440	635	1600	2200	51.5	136	134	203	181	204		11.5	2.5		9.169
JT-XXUSD-32324		260	90.5	86	69	4	3	770	1060	1400	1900	61.5	145	138	246	213	239		21.5	3	2.5	21.7
JT-XXUSD-31324		260	68	62	42	4	3	526	665	1300	1800	81.6	1448	156	246	206	244	9	26	3	2.5	15.4
JT-XXUSD-32026	130	200	45	45	34	2.5	2	320	535	1600	2200	43.5	144	152	190	178	192	8	11	2	2	5.06
JT-XXUSD-30226		230	43.75	40		4	3	375	505	1500	2000	45.5	152	148	216	203	218	7	9.5	3	2.5	7.24
JT-XXUSD-32326		230	67.75	64	54	4	3	530	790	1500	2000	57	146	148	216	193	219	7	13.5	3	2.5	11.37
JT-XXUSD-31326		280	72	66	44	5	4	589	748	1200	1600	87.1	159	174	262	220	261	9	28	4	3	18.9
JT-XXUSD-32928	140	190	32	32	25	2	1.5	170	318.75	1445	1870	32	150	150	181.5	177	184	6	6	2	1.5	2.51
JT-XXUSD-32028		210	45	45	34	2.5	2	325	555	1600	2200	46	153	152	200	187	202	8	11	2	2	5.21
JT-XXUSD-30228		250	45.75	42	36	3	3	390	515	1400	1900	47.5	163	158	236	219	237	7	9.5	2.5	2.5	8.892
JT-XXUSD-32228		250	71.75	68	58	4	3	610	915	1400	1900	61	158	158	236	210	238	9	13.5	3	2.5	14.68
JT-XXUSD-31328		300	77	70	47	5	4	674	865	1100	1500	92.8	174	184	282	236	280	9	30	4	3	23.3
JT-XXUSD-32030	150	225	48	48	36	3	2.5	375	650	1400	2000	49.5	164	164	213	200	216	8	12	2.5	2	6.2
JT-XXUSD-32230		270	77	73	60	4	3	595	900	1300	1700	64.5	170	168	256	226	254	8	17	3	2.5	17.4
JT-XXUSD-31330		320	82	75	50	5	4	763	898	980	1400	99.3	187	194	302	253	300	9	32	4	3	28
JT-XXUSD-32932	160	220	38	38	30	2.5	2	234.6	442	1275	1615	38.5	170.5	172	210	199	213.5	7	8	2	2	4.15
JT-XXUSD-32032	160	240	51	51	38	3	2.5	425	750	1300	1800	52.5	175	174	228	213	231	8	13	2.5	2	8

1Kgf=9.81N

暂未上传文档资料

快速报价 0 购物车公众号

公众号二维码

微信公众账号

微信扫一扫关注

客服电话

13000000000

客服二维码

微信扫一扫咨询
